SKU: BK1614RS-MB

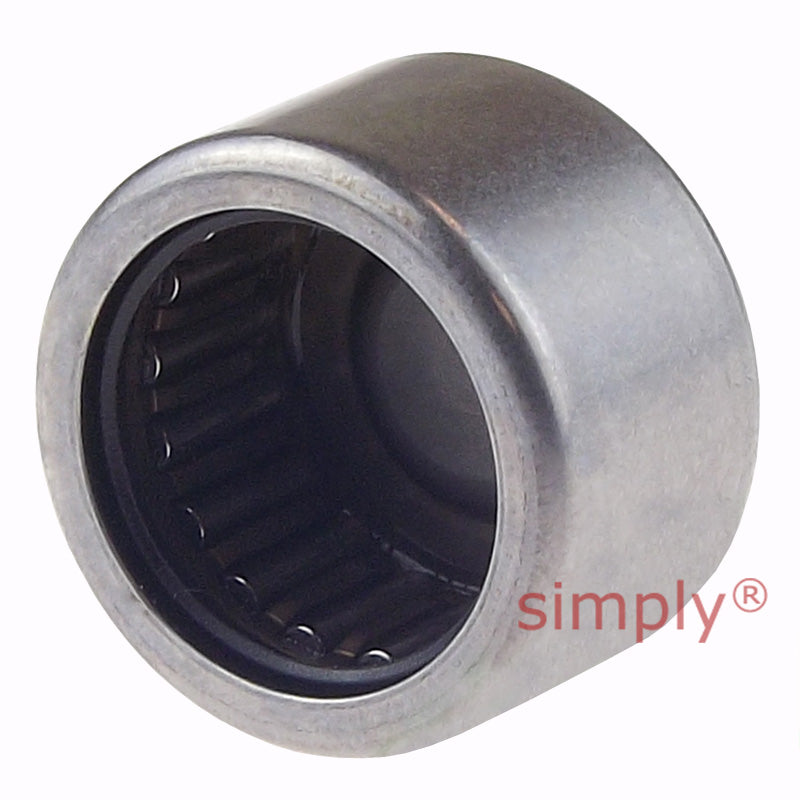

Major Brand BK1614RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 16x22x14mm
- Regular price
- $12.73 ex VAT
- Sale price
- $12.73
- Regular price
-
Not in stock
Quantity Price Breaks
10
$11.33
19
$10.69
29
$10.57
39
$10.44
49
$10.31
74
$10.18
99
$9.55
199
$9.42
249
$9.29
499
$9.17
999
$8.91
SKU:
BK1614RS-MB
Major Brand BK1614RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 16x22x14mm
- Regular price
- $12.73 ex VAT
- Sale price
- $12.73
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 16mm |
| D | = | 22mm |
| C | = | 14mm |
| Dynamic load | = | 7370 N |
| Static load | = | 9800 N |
| Fatigue load limit Pu | = | 1120 N |
| Speed in grease | = | 10000 rpm |
| C1 | = | 11.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 17mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR12x16x13 |
| Weight | = | 15 g |
