SKU: BA9-MB

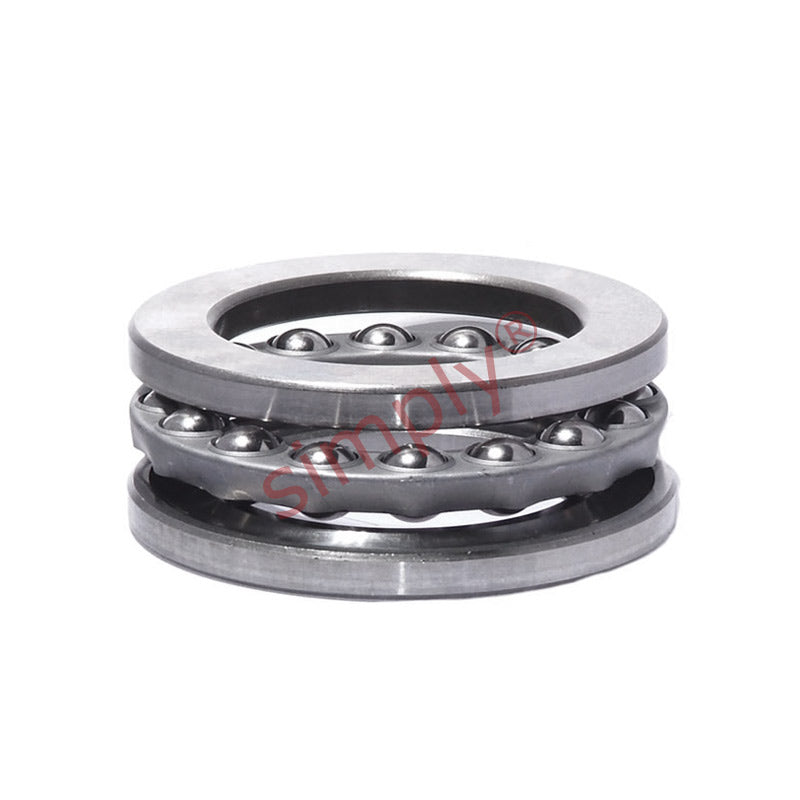

Branded BA9 Single Thrust Ball Bearing 9x20x7mm
- Regular price
- $34.27 ex VAT
- Sale price
- $34.27
- Regular price
-
In stock
Quantity Price Breaks
10
$30.50
19
$28.79
29
$28.44
39
$28.10
49
$27.76
74
$27.42
99
$25.70
199
$25.36
249
$25.02
499
$24.67
999
$23.99
SKU:
BA9-MB
Branded BA9 Single Thrust Ball Bearing 9x20x7mm
- Regular price
- $34.27 ex VAT
- Sale price
- $34.27
- Regular price
-
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

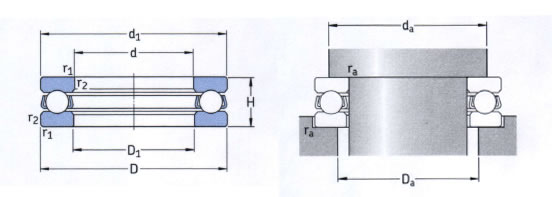

Technical
| d | = | 9mm |
| D | = | 20mm |
| H | = | 7mm |
| Dynamic load C | = | 3.12 kN |
| Static load Co | = | 3.8 kN |
| Fatigue load limit Pu | = | 0.143 kN |
| Minimum load factor A | = | 0.000075 |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 16000 rpm |
| Weight | = | 0.01 kg |
| d1 | = | 19.8mm |
| D1 | = | 9.2mm |
| r1r2 min | = | 0.3mm |
| da min | = | 15.5mm |
| Da max | = | 13.5mm |
| ra max | = | 0.3mm |
