SKU: BA3-EU

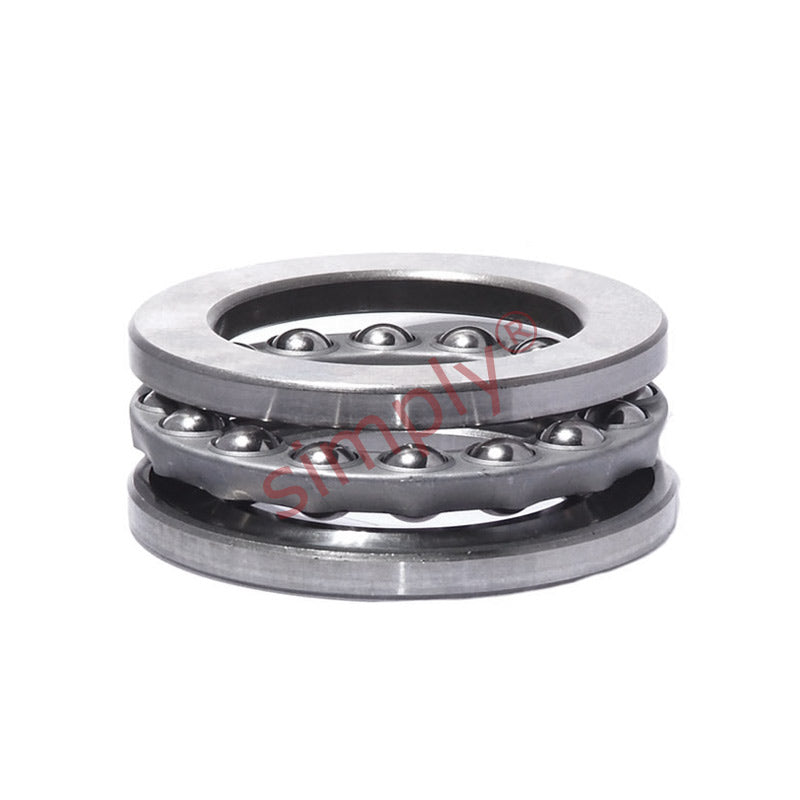

BA3 Budget Single Thrust Ball Bearing 3x8x3.5mm
- Regular price
- $7.12 ex VAT
- Sale price
- $7.12
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
$6.34
19
$5.98
29
$5.91
39
$5.84
49
$5.77
74
$5.70
99
$5.34
199
$5.27
249
$5.20
499
$5.13
999
$4.98
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 3mm |
| D | = | 8mm |
| H | = | 3.5mm |
| Dynamic load C | = | 0.806 kN |
| Static load Co | = | 0.72 kN |
| Fatigue load limit Pu | = | 0.027 kN |
| Minimum load factor A | = | 0.000003 |
| Reference speed | = | 26000 rpm |
| Limiting speed | = | 36000 rpm |
| Weight | = | 0.0009 kg |
| d1 | = | 7.8mm |
| D1 | = | 3.2mm |
| r1r2 min | = | 0.15mm |
| da min | = | 5.8mm |
| Da max | = | 5mm |
| ra max | = | 0.15mm |
