SKU: B-2610

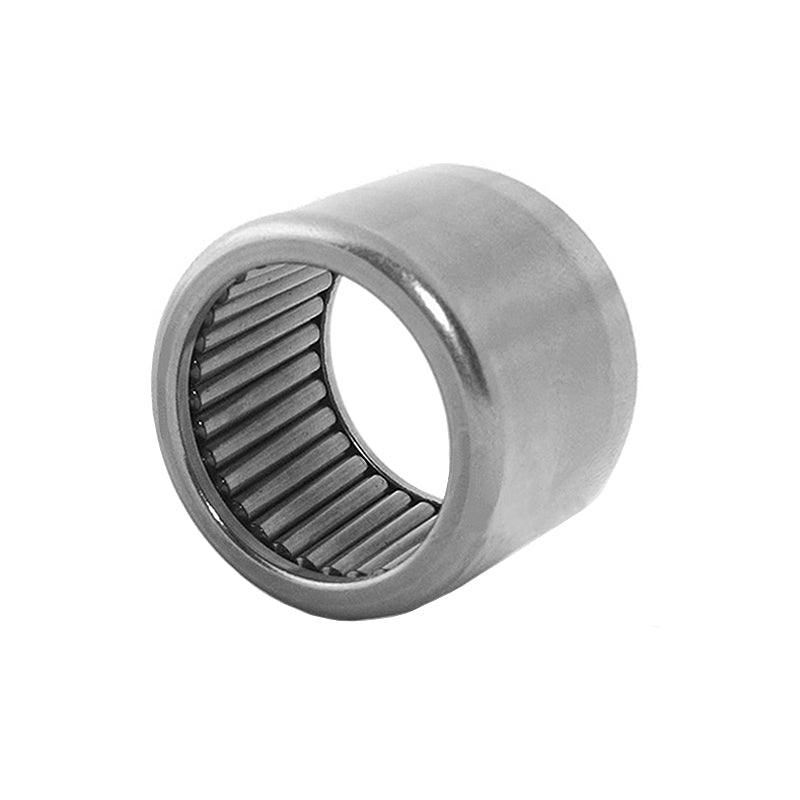

Major Branded B2610 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x5/8 inch
- Regular price
- $24.92 ex VAT
- Sale price
- $24.92
- Regular price
-
In stock
Quantity Price Breaks
5
$22.18
9
$20.93
19
$20.68
29
$20.43
49
$20.19
74
$19.94
99
$18.69
199
$18.44
249
$18.19
499
$17.94
999
$17.44
SKU:
B-2610
Major Branded B2610 Imperial Drawn Cup Open End Type Full Complement Needle Roller Bearing 1-5/8x2x5/8 inch
- Regular price
- $24.92 ex VAT
- Sale price
- $24.92
- Regular price
-
Description
Full Complement Needle Roller Bearings: Of similar construction to the common HK and TA series needle roller bearings but having no cage and twice the number of rollers occupying the same space to permit greater load carrying capacity. Often referred to as crowded roller construction. |
Technical

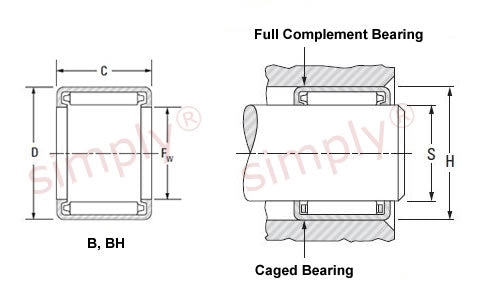

| Inside Diameter | = | 41.28mm = 1.625 inch |
| Outside Diameter | = | 50.8mm = 2 inch |
| Width | = | 15.88mm = 0.625 inch |
| Dynamic load C | = | 30.6 kN |
| Static load Co | = | 57.4 kN |
| S max | = | 41.275mm = 1.625 inch |
| S min | = | 41.262mm = 1.6245 inch |
| H max | = | 50.813mm = 2.0005 inch |
| H min | = | 50.787mm = 1.9995 inch |
