SKU: AXK1528-EU-AS1528-EU

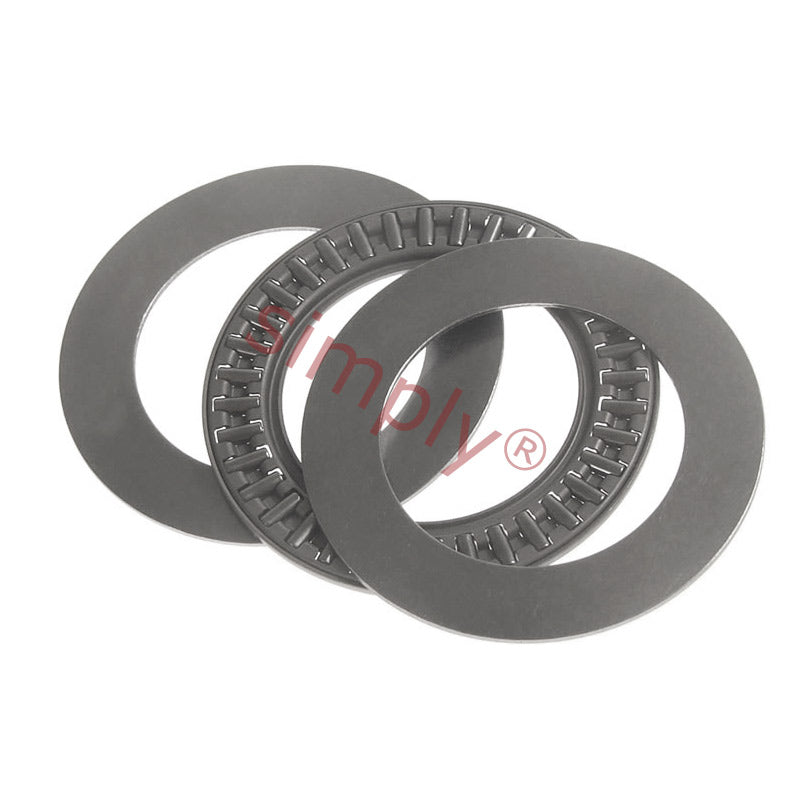

AXK1528/AS1528 Budget Needle Roller Cage with 2 AS Washers 15x28x4mm
- Regular price
- $4.12 ex VAT
- Sale price
- $4.12
- Regular price
-
In stock
Quantity Price Breaks
10+
$3.67
19+
$3.46
29+
$3.42
39+
$3.38
49+
$3.34
74+
$3.30
99+
$3.09
199+
$3.05
249+
$3.01
499+
$2.97
999+
$2.88
SKU:
AXK1528-EU-AS1528-EU
AXK1528/AS1528 Budget Needle Roller Cage with 2 AS Washers 15x28x4mm
- Regular price
- $4.12 ex VAT
- Sale price
- $4.12
- Regular price
-
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 15mm |
| D | = | 28mm |
| Dw | = | 4mm |
| Ea | = | 17mm |
| Eb | = | 27mm |
| Dynamic load C | = | 10400 N |
| Static load Co | = | 37500 N |
| Fatigue load limit Pu | = | 4150 N |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| Weight (Assembly) | = | 4 g |
| d1 | = | 28mm |
| D | = | 28mm |
| D1 | = | 16mm |
| B | = | 2.75mm |
| r1r2 min | = | 0.3mm |
| Weight LS GS WS | = | 9 g |
| Weight AS | = | 3 g |
| Raceway washer | = | LS1528 |
| Thrust washer | = | AS1528 |
| Shaft washer | = | WS81102 |
| Housing washer | = | GS81102 |
