SKU: AXK140180-EU-AS140180-EU
AXK140180/AS140180 Budget Needle Roller Cage with 2 AS Washers 140x180x7mm
- Regular price
- $147.78 ex VAT
- Sale price
- $147.78
- Regular price
-
In stock
Quantity Price Breaks
10+
$131.52
19+
$124.14
29+
$122.66
39+
$121.18
49+
$119.70
74+
$118.22
99+
$110.84
199+
$109.36
249+
$107.88
499+
$106.40
999+
$103.45
SKU:
AXK140180-EU-AS140180-EU
AXK140180/AS140180 Budget Needle Roller Cage with 2 AS Washers 140x180x7mm
- Regular price
- $147.78 ex VAT
- Sale price
- $147.78
- Regular price
-
Description
|
Budget AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |

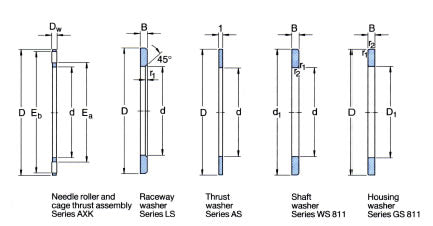

Technical
| d | = | 140mm |
| D | = | 180mm |
| Dw | = | 7mm |
| Ea | = | 146mm |
| Eb | = | 177mm |
| Dynamic load C | = | 116000 N |
| Static load Co | = | 900000 N |
| Fatigue load limit Pu | = | 98600 N |
| Speed in grease | = | 670 rpm |
| Speed in oil | = | 900 rpm |
| Weight (Assembly) | = | 220 g |
| d1 | = | 178mm |
| D | = | 180mm |
| D1 | = | 142mm |
| B | = | 9.5mm |
| r1r2 min | = | 1mm |
| Weight LS GS WS | = | 750 g |
| Weight AS | = | 79 g |
| Raceway washer | = | LS140180 |
| Thrust washer | = | AS140180 |
| Shaft washer | = | WS81128 |
| Housing washer | = | GS81128 |
