SKU: ASPF205-100-NTN

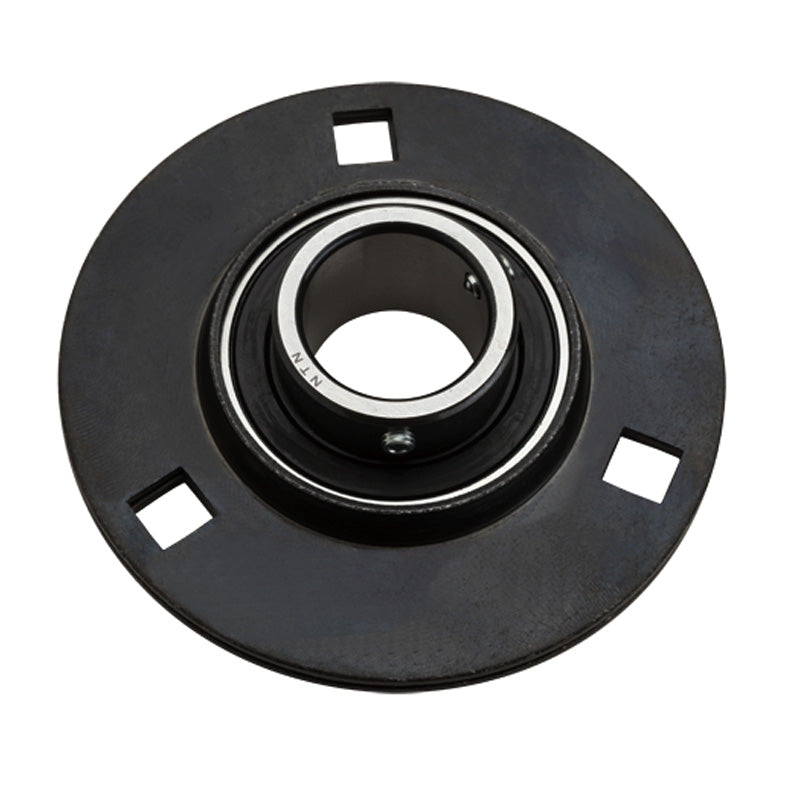

NTN ASPF205-100 Round 3 Bolt Pressed Steel Bearing Housing with 1 inch Insert - Allow 2-3 Days
- Regular price
- $27.32 ex VAT
- Sale price
- $27.32
- Regular price
-
In stock
Quantity Price Breaks
10+
$24.31
19+
$22.95
29+
$22.68
39+
$22.40
49+
$22.13
74+
$21.86
99+
$20.49
199+
$20.22
249+
$19.94
499+
$19.67
999+
$19.12
SKU:
ASPF205-100-NTN
NTN ASPF205-100 Round 3 Bolt Pressed Steel Bearing Housing with 1 inch Insert - Allow 2-3 Days
- Regular price
- $27.32 ex VAT
- Sale price
- $27.32
- Regular price
-
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
Technical

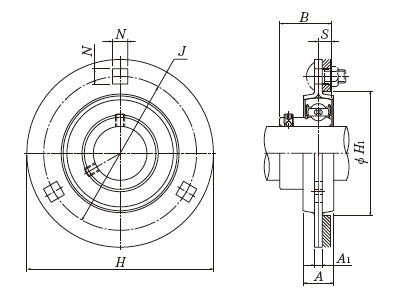

| --- | = | Dimensions |
| Shaft diameter | = | 1 inch |
| H | = | 3-3/4 inch |
| J | = | 2-63/64 inch |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 0.157 inch | |
| N | = | 23/64 inch |
| A | = | 23/32 inch |
| B | = | 1.063 inch |
| S | = | 0.295 inch |
| H< | = | sub> |
| 1< | = | /sub> |
| min | = | 2-23/64 inch |
| Fixing bolt | = | 5/16 inch |
| --- | = | Load rating |
| Max load recommended radial | = | 880 lbf |
| Max load recommended axial | = | 440 lbf |
| --- | = | Unit information |
| Mass | = | 0.7 lbs |
