SKU: ASFD201-NTN

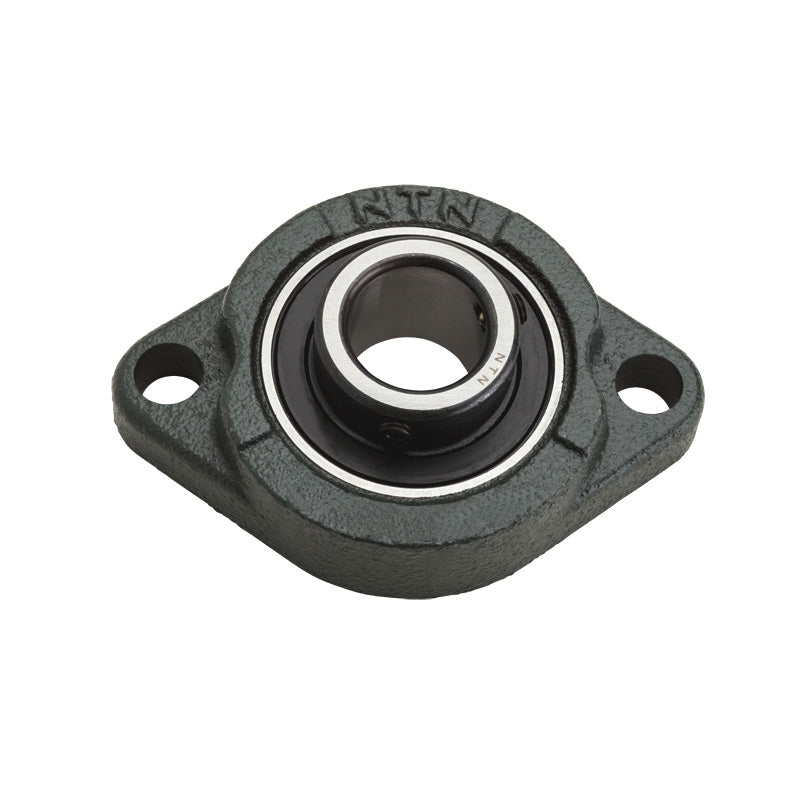

NTN ASFD201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- $31.19 ex VAT
- Sale price
- $31.19
- Regular price
-
In stock
Quantity Price Breaks
10+
$27.76
19+
$26.20
29+
$25.89
39+
$25.58
49+
$25.26
74+
$24.95
99+
$23.39
199+
$23.08
249+
$22.77
499+
$22.46
999+
$21.83
SKU:
ASFD201-NTN
NTN ASFD201 Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- $31.19 ex VAT
- Sale price
- $31.19
- Regular price
-
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 12mm |
| H | = | 81mm |
| J | = | 63mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 8.5mm | |
| A | = | 15mm |
| N | = | 7mm |
| L | = | 59mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 24.5mm | |
| B | = | 22mm |
| S | = | 6mm |
| Fixing bolt | = | M6 |
| Mass | = | 0.3 kg |
