SKU: AH3236G-MB
Major Branded AH3236G Withdrawal Sleeve for 170mm shaft
- Regular price
- $541.38 ex VAT
- Sale price
- $541.38
- Regular price
-
Not in stock
Quantity Price Breaks
10
$481.83
19
$454.76
29
$449.35
39
$443.93
49
$438.52
74
$433.10
99
$406.04
199
$400.62
249
$395.21
499
$389.79
999
$378.97
SKU:
AH3236G-MB
Major Branded AH3236G Withdrawal Sleeve for 170mm shaft
- Regular price
- $541.38 ex VAT
- Sale price
- $541.38
- Regular price
-
Description
|

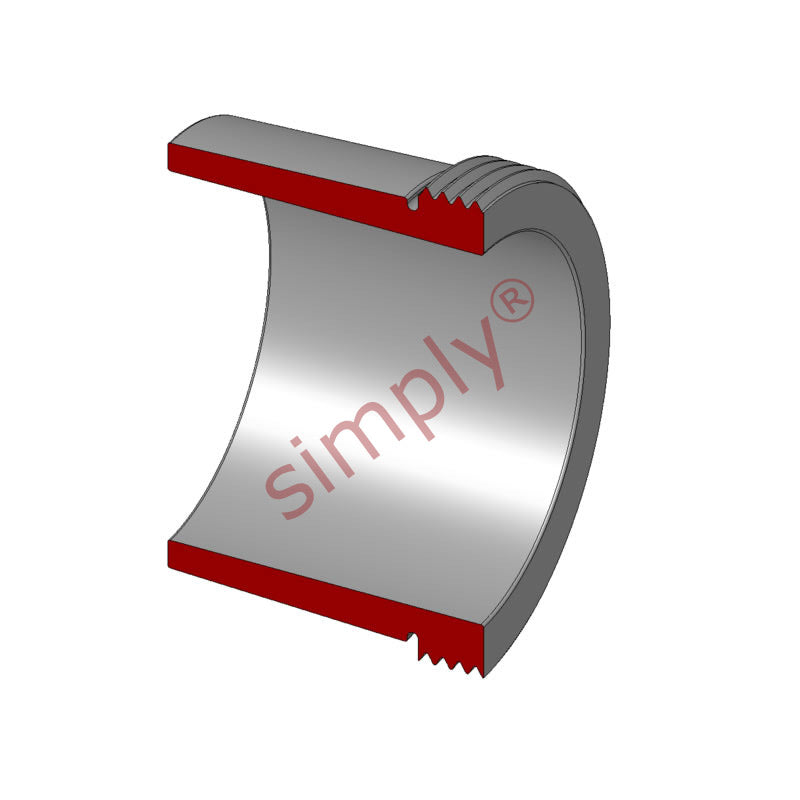

Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 170mm |
| d | = | 180mm |
| B1 | = | 140mm |
| B2 | = | 146mm |
| G | = | Thread 190x3mm |
| G1 | = | 24mm |
| Weight | = | 4.85 kg |

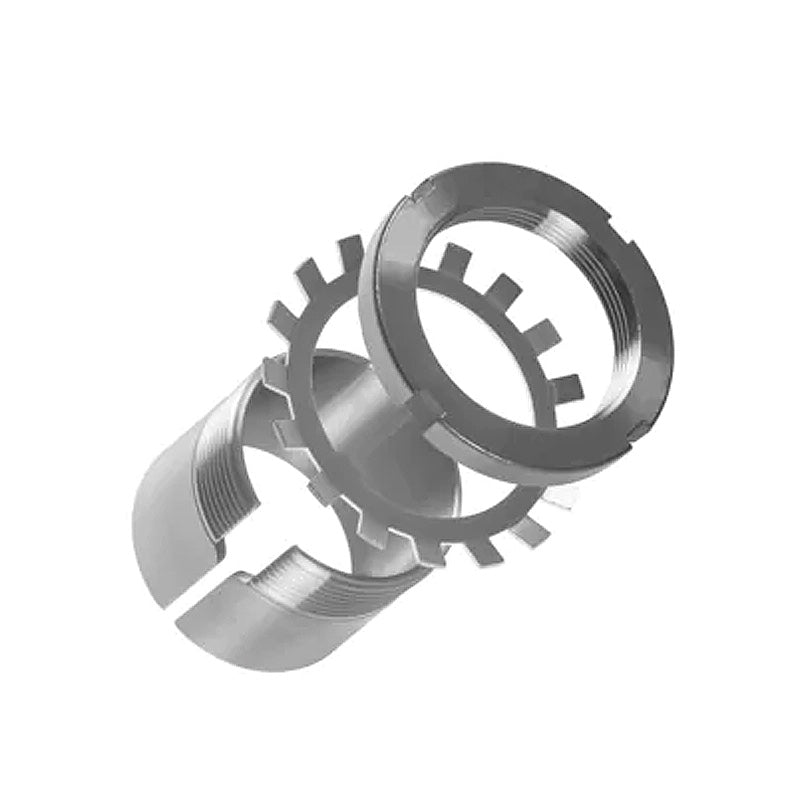

| --- | = | Assembly Parts |
| Sleeve | = | AH3236G |
| Nut | = | KM38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23236K+taper> | = | 23236K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3236K+taper> | = | C3236K< |
| /a> | = |
