SKU: AH3134G-MB
Major Branded AH3134G Withdrawal Sleeve for 160mm shaft
- Regular price
- $524.53 ex VAT
- Sale price
- $524.53
- Regular price
-
Not in stock
Quantity Price Breaks
10
$466.83
19
$440.61
29
$435.36
39
$430.11
49
$424.87
74
$419.62
99
$393.40
199
$388.15
249
$382.91
499
$377.66
999
$367.17
SKU:
AH3134G-MB

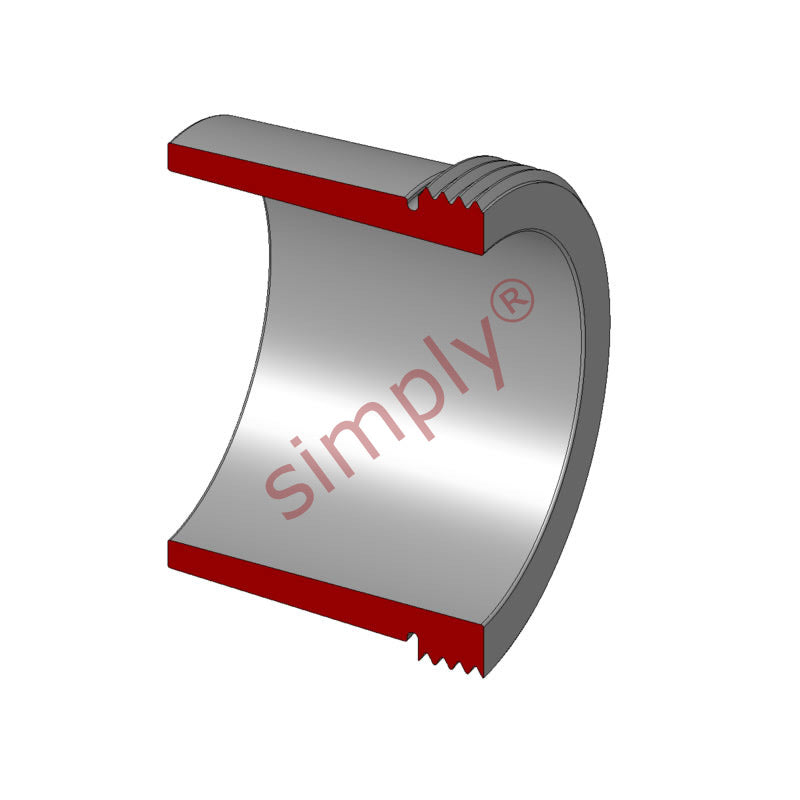

Major Branded AH3134G Withdrawal Sleeve for 160mm shaft
- Regular price
- $524.53 ex VAT
- Sale price
- $524.53
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 160mm |
| d | = | 170mm |
| B1 | = | 104mm |
| B2 | = | 109mm |
| G | = | Thread 180x3mm |
| G1 | = | 16mm |
| Weight | = | 3.2 kg |

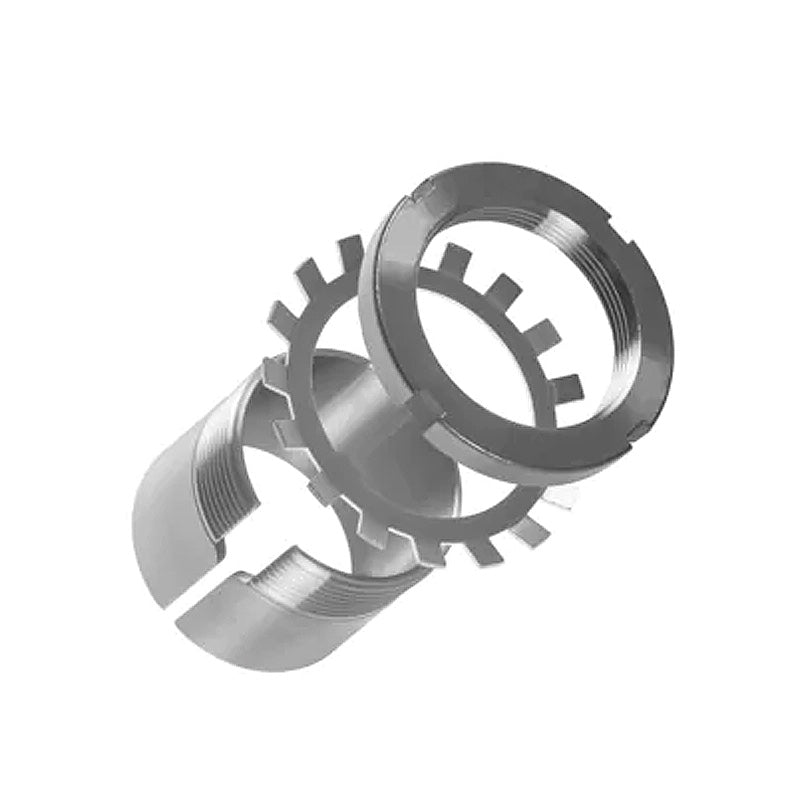

| --- | = | Assembly Parts |
| Sleeve | = | AH3134G |
| Nut | = | KM36 |
| Hydraulic nut | = | HMV36E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23134K+taper> | = | 23134K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22234K+taper> | = | 22234K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3134K+taper> | = | C3134K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2234K+taper> | = | C2234K< |
| /a> | = |
