SKU: AH24134-MB

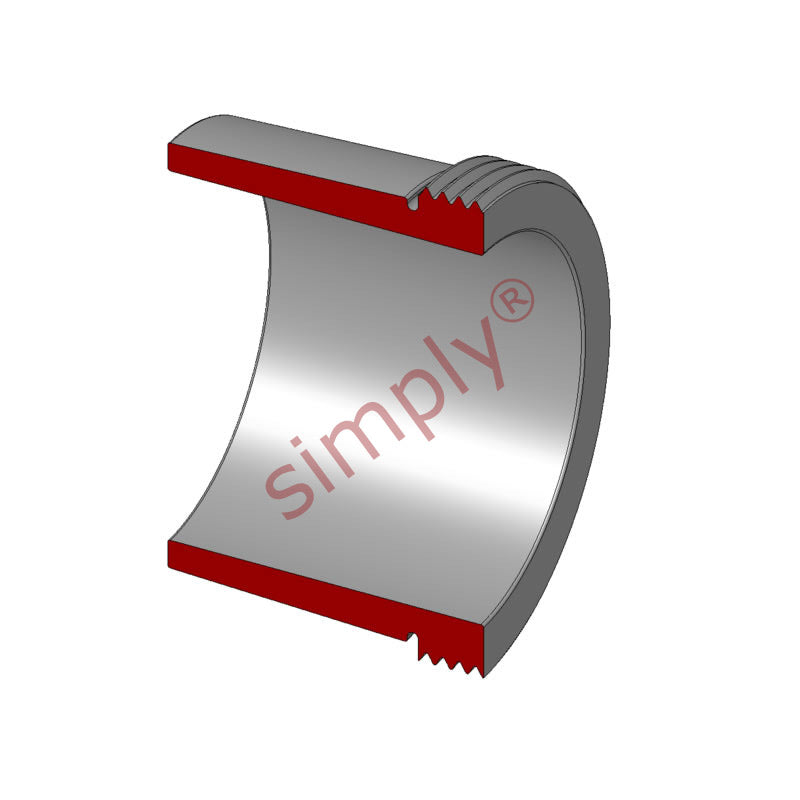

Major Branded AH24134 Withdrawal Sleeve for 160mm shaft
- Regular price
- $671.08 ex VAT
- Sale price
- $671.08
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$597.26
19
$563.71
29
$557.00
39
$550.29
49
$543.57
74
$536.86
99
$503.31
199
$496.60
249
$489.89
499
$483.18
999
$469.76
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 160mm |
| d | = | 170mm |
| B1 | = | 125mm |
| B2 | = | 136mm |
| G | = | Thread 180x3mm |
| G1 | = | 16mm |
| Weight | = | 3.25 kg |

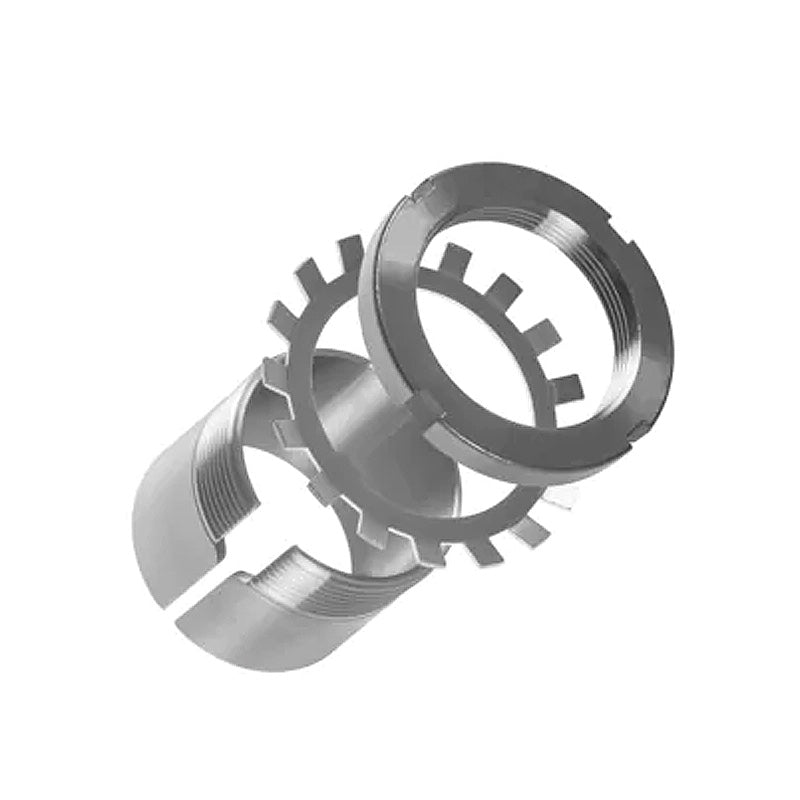

| --- | = | Assembly Parts |
| Sleeve | = | AH24134 |
| Nut | = | KM36 |
| Hydraulic nut | = | HMV36E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24134K+taper> | = | 24134K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4134K30V+taper> | = | C4134K30V< |
| /a> | = |
