SKU: AH2340-MB

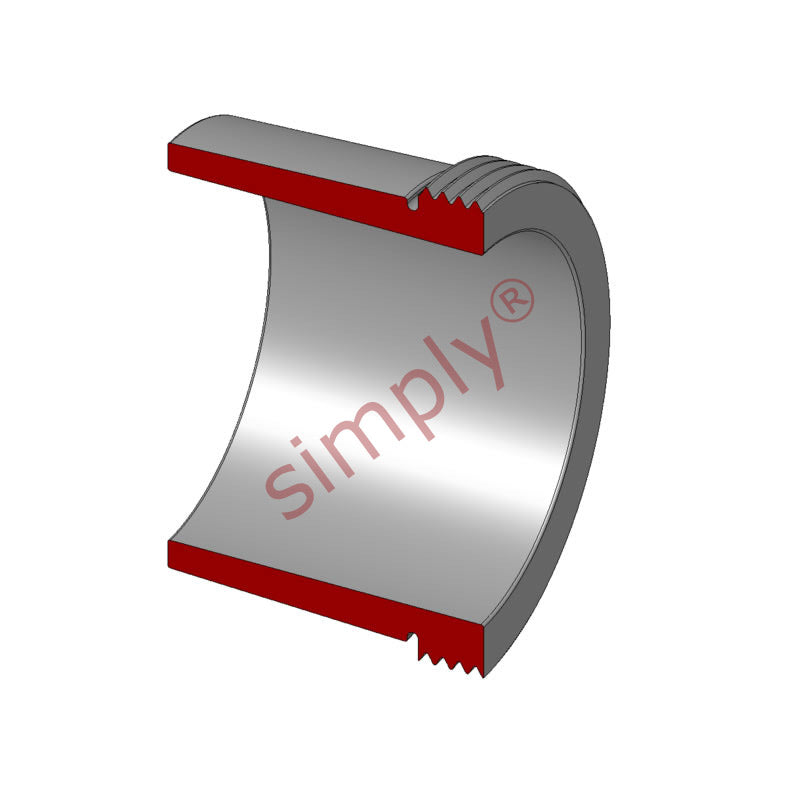

Major Branded AH2340 Withdrawal Sleeve for 190mm shaft
- Regular price
- $1,169.28 ex VAT
- Sale price
- $1,169.28
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$1,040.66
19
$982.20
29
$970.50
39
$958.81
49
$947.12
74
$935.42
99
$876.96
199
$865.27
249
$853.57
499
$841.88
999
$818.50
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 190mm |
| d | = | 200mm |
| B1 | = | 170mm |
| B2 | = | 177mm |
| G | = | Thread 220x4mm |
| G1 | = | 30mm |
| Weight | = | 7.6 kg |

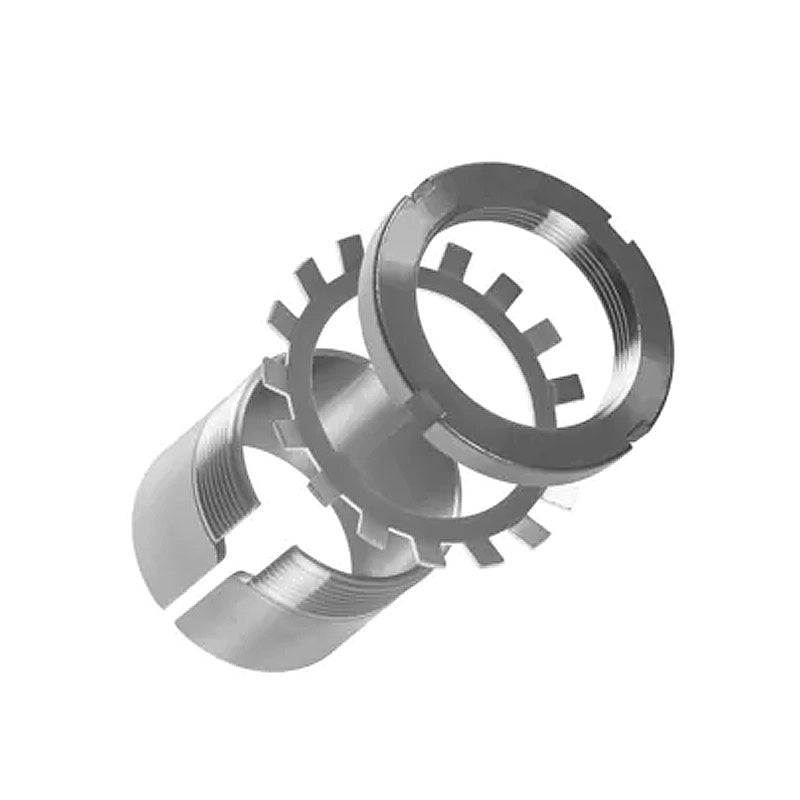

| --- | = | Assembly Parts |
| Sleeve | = | AH2340 |
| Nut | = | HM3044 |
| Hydraulic nut | = | HMV44E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22340K+taper> | = | 22340K< |
| /a> | = |
