SKU: 80-3-SYN-NO26-RENOLD
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $120.25 ex VAT
- Sale price
- $120.25
- Regular price
-
Not in stock
Quantity Price Breaks
2
$107.02
5
$101.01
10
$99.81
29
$98.61
49
$97.40
75
$96.20
100
$90.19
200
$88.99
250
$87.78
500
$86.58
1000
$84.18
SKU:
80-3-SYN-NO26-RENOLD
Renold Synergy 80-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $120.25 ex VAT
- Sale price
- $120.25
- Regular price
-
Description

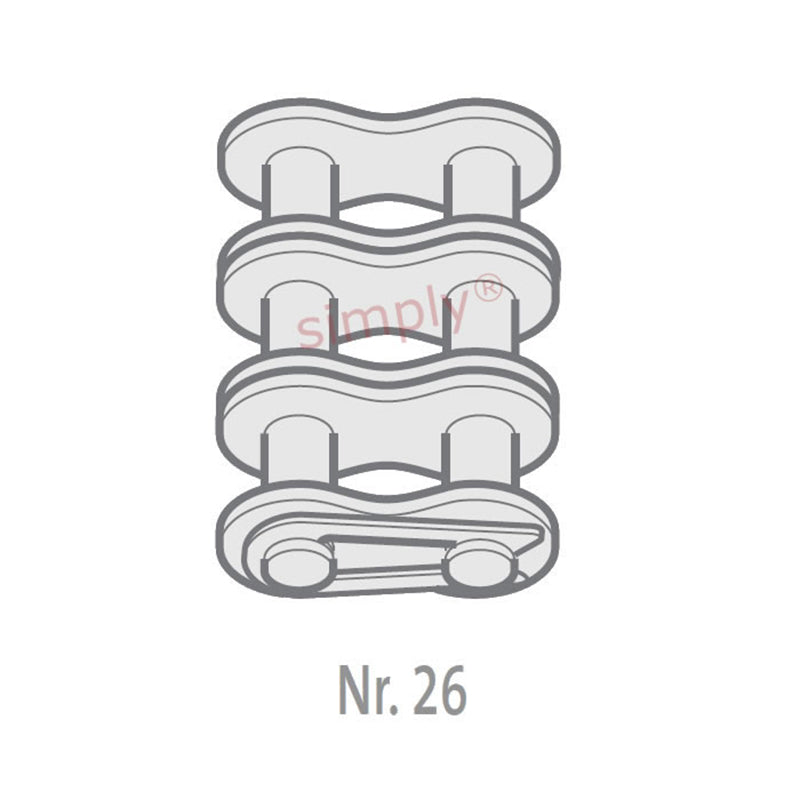

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.13mm |
| Plate Width Inner max (E) | = | 3.25mm |
| Plate Width Outer max (F) | = | 3.25mm |
| Pin Diameter max (G) | = | 7.94mm |
| Pin Length max (H2) | = | 91.2mm |
| Connecting Link Extension max (J) | = | 3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 166800 N |
| Weight | = | 0.01kg/m |
