SKU: 80-2-SD-NO26-RENOLD
Renold SD 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $20.20 ex VAT
- Sale price
- $20.20
- Regular price
-
In stock
Quantity Price Breaks
2
$17.98
5
$16.97
10
$16.77
29
$16.56
49
$16.36
75
$16.16
100
$15.15
200
$14.95
250
$14.75
500
$14.54
1000
$14.14
SKU:
80-2-SD-NO26-RENOLD
Renold SD 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $20.20 ex VAT
- Sale price
- $20.20
- Regular price
-
Description

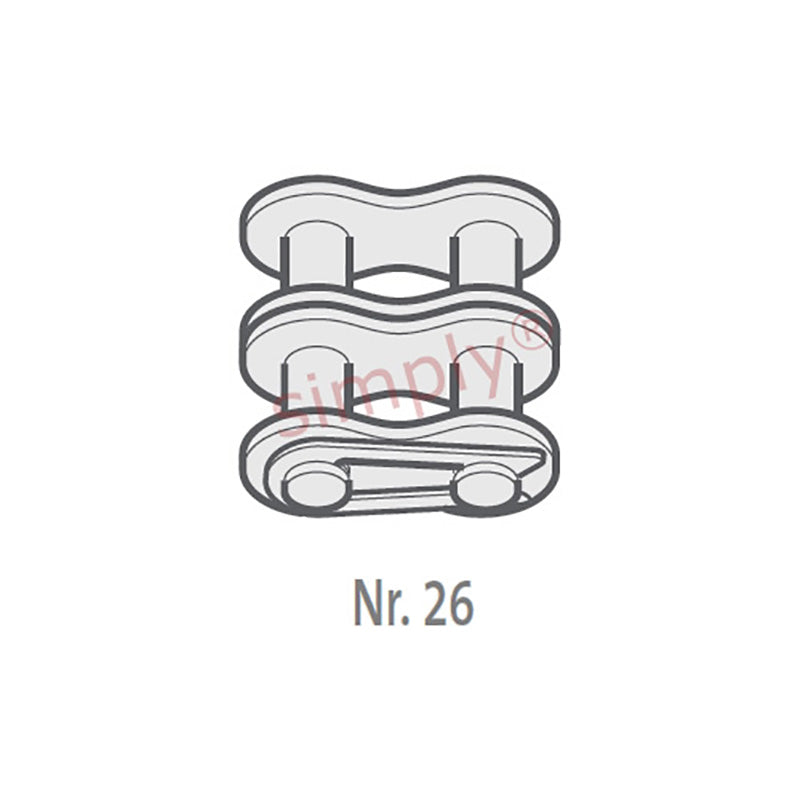

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 15.75mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 24.1mm |
| Plate Width Inner max (E) | = | 3.1mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 7.92mm |
| Pin Length max (H2) | = | 61.9mm |
| Connecting Link Extension max (J) | = | 2.3mm |
| Transverse Pitch nom (K) | = | 29.29mm |
| ISO606 Tensile Strength min | = | 111200 N |
| Weight | = | 0.04kg/m |
