SKU: 770XH-500-88

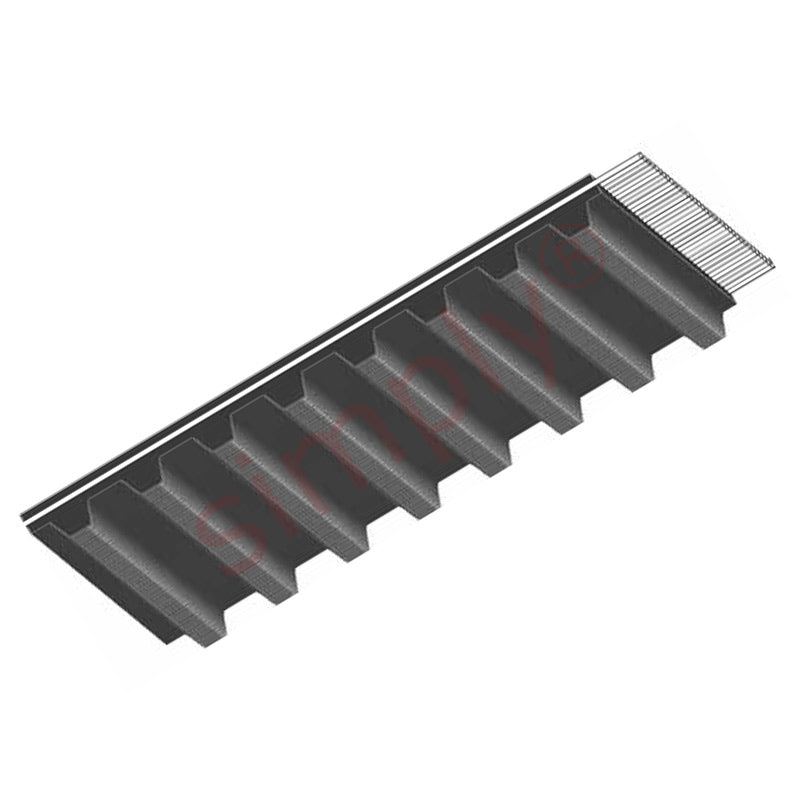

770XH500 Major Brand Synchronous Toothed Belt 5.00 inch Wide 77 inch Length 88 Teeth Allow 2-3 Days
- Regular price
- $179.45 ex VAT
- Sale price
- $179.45
- Regular price
-
Not in stock
Quantity Price Breaks
3
$159.71
5
$150.74
10
$148.94
15
$147.15
20
$145.35
30
$143.56
40
$134.59
50
$132.79
60
$131.00
75
$129.20
100
$125.62
SKU:
770XH-500-88
770XH500 Major Brand Synchronous Toothed Belt 5.00 inch Wide 77 inch Length 88 Teeth Allow 2-3 Days
- Regular price
- $179.45 ex VAT
- Sale price
- $179.45
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 5.00 inch = 127.00mm |
| Pitch length | = | 77 inch = 1955.8mm |
| Number of teeth | = | 88 |
| Tooth pitch t | = | 0.875 inch |
| Flank angle f | = | 40 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.25 inch | |
| Pitch zone u | = | 0.055 inch |
