SKU: 7048ACDGA/P4A-SKF

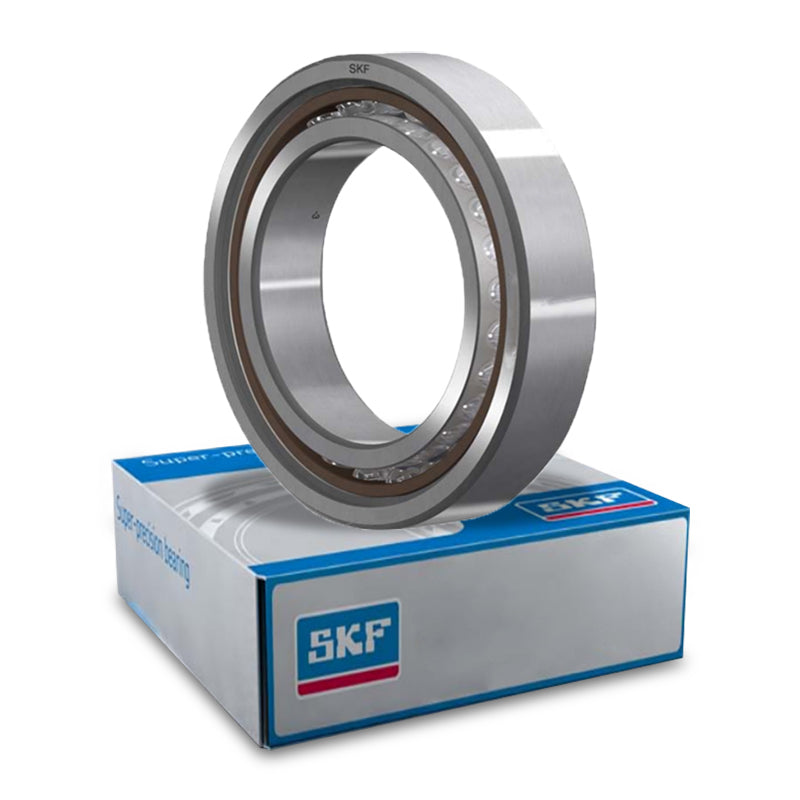

SKF 7048ACDGA/P4A Super Precision Angular Contact Spindle Bearing 240x360x56mm
- Regular price
- $3,459.42 ex VAT
- Sale price
- $3,459.42
- Regular price
-
Quantity Price Breaks
SKF 7048ACDGA/P4A Super Precision Angular Contact Spindle Bearing 240x360x56mm
- Regular price
- $3,459.42 ex VAT
- Sale price
- $3,459.42
- Regular price
-
Description
SKF Super Precision Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load-bearing capacity.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings, this is difficult to check, in these cases, the thrust is applied from the side where the bearing number markings are not present.
In these bearings, the raceways and balls are manufactured with chromium steel.
This item is supplied as a single universally matchable bearing.
Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 240mm |
| D | = | 360mm |
| B | = | 56mm |
| C | = | 345kN |
| Co | = | 490kN |
| Pu | = | 12kN |
| rpm in grease | = | 3800kN |
| = | rpm in grease | |
| 3800 | = | rpm in oil-air |
| 5600 | = | d1 |
| 277mm | = | d2 |
| 277mm | = | D1 |
| 323mm | = | |
| r1 & | = | r2 min |
| 3mm | = | r3 & |
| r4 min | = | 1.5mm |
| da min | = | 253mm |
| db min | = | 253mm |
| Da max | = | 347mm |
| Db max | = | 354mm |
| ra max | = | 2.5mm |
| rb max | = | 1.5mm |
| dn | = | 287mm |
| Grease fill ref qty | = | 216cm< |
| sup> | = | 3< |
| /sup> | = | |
| Weight | = | 17kg |
