SKU: 6313LLBNR/2AS-NTN

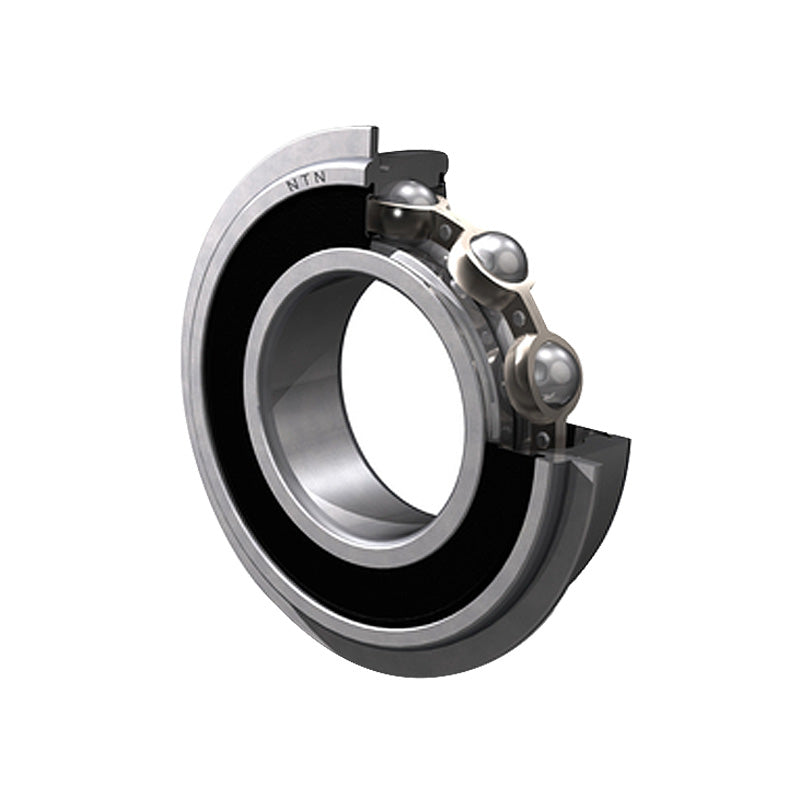

NTN 6313LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 65x140x33mm
- Regular price
- $118.04 ex VAT
- Sale price
- $118.04
- Regular price
-
Quantity Price Breaks
NTN 6313LLBNR/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals and Snap Ring 65x140x33mm
- Regular price
- $118.04 ex VAT
- Sale price
- $118.04
- Regular price
-
Description
|
Non Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing. These types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
The snap ring groove is around the outside of the bearing and is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Technical
| --- | = | Bearing dimensions |
| d | = | 65mm |
| D | = | 140mm |
| B | = | 33mm |
| r< | = | sub> |
| s< | = | /sub> |
| min | = | 2.1 |
| --- | = | Loads angles and speeds |
| rNS Min. | = | 0.5 |
| C< | = | sub> |
| r< | = | /sub> |
| = | 103 kN | |
| C< | = | sub> |
| or< | = | /sub> |
| = | 60 kN | |
| C< | = | sub> |
| u< | = | /sub> |
| = | 4.6 kN | |
| f< | = | sub> |
| 0< | = | /sub> |
| = | 13.2 | |
| Grease | = | 4900 rpm |
| --- | = | Fitting Dimensions |
| Oil | = | 5800 rpm |
| D< | = | sub> |
| 1< | = | /sub> |
| Max. | = | 135.23mm |
| a Max. | = | 4.9mm |
| b Min. | = | 3.1mm |
| r< | = | sub> |
| o< | = | /sub> |
| Max. | = | 0.6mm |
