SKU: 62203-2RS2-NKE

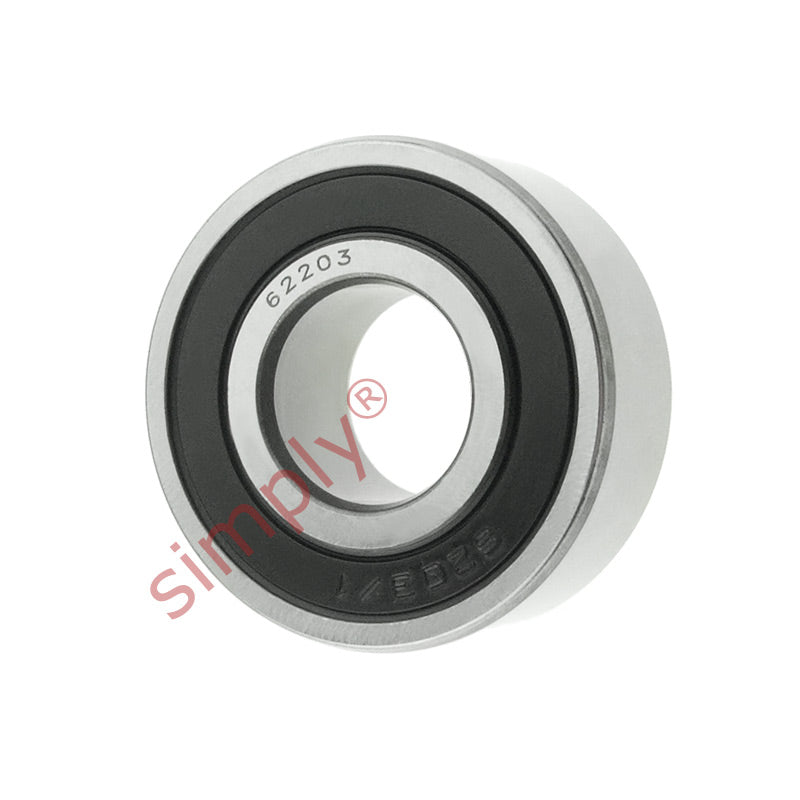

NKE 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
- Regular price
- $12.26 ex VAT
- Sale price
- $12.26
- Regular price
-
In stock
Quantity Price Breaks
10+
$10.91
19+
$10.30
29+
$10.18
39+
$10.05
49+
$9.93
74+
$9.81
99+
$9.20
199+
$9.07
249+
$8.95
499+
$8.83
999+
$8.58
SKU:
62203-2RS2-NKE
NKE 622032RS1 Rubber Sealed Deep Groove Ball Bearing 17x40x16mm
- Regular price
- $12.26 ex VAT
- Sale price
- $12.26
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 17mm |
| D | = | 40mm |
| B | = | 16mm |
| Dynamic load C | = | 9.56 kN |
| Static load Co | = | 4.75 kN |
| Fatigue load limit Pu | = | 0.2 kN |
| Reference speed | = | 38000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.083 kg |
| d1 | = | 24.5mm |
| D2 | = | 35mm |
| r1r2 min | = | 0.6mm |
| da min | = | 21.2mm |
| Da max | = | 35.8mm |
| ra max | = | 0.6mm |
| Calculation factor kr | = | 0.025 |
| Calculation factor f0 | = | 13 |
