SKU: 6204NRC3-NTN

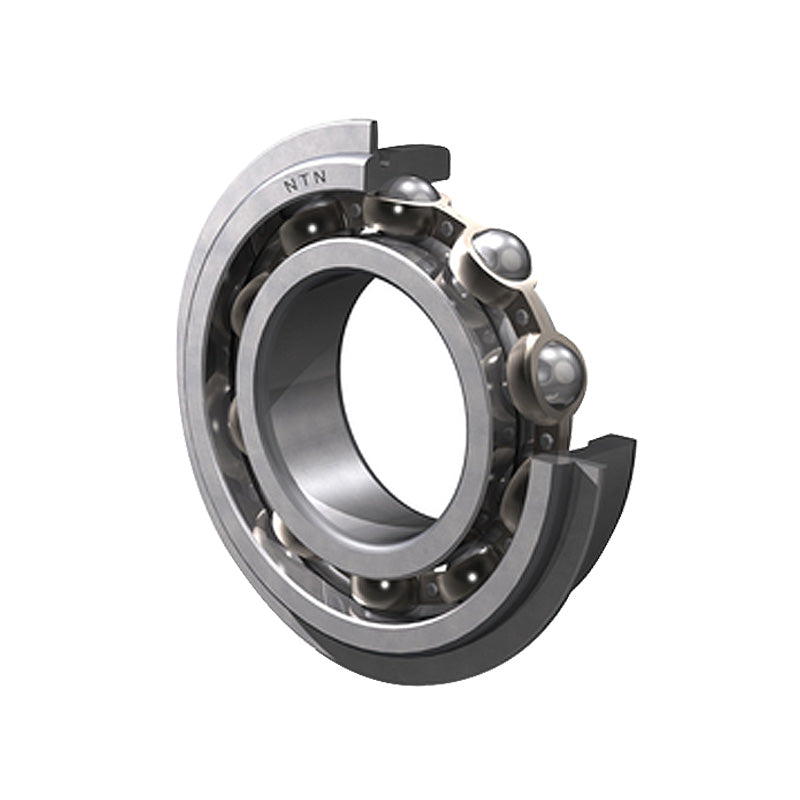

NTN 6204NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 20x47x14mm
- Regular price
- $24.71 ex VAT
- Sale price
- $24.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$21.99
19+
$20.76
29+
$20.51
39+
$20.26
49+
$20.02
74+
$19.77
99+
$18.53
199+
$18.29
249+
$18.04
499+
$17.79
999+
$17.30
SKU:
6204NRC3-NTN
NTN 6204NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 20x47x14mm
- Regular price
- $24.71 ex VAT
- Sale price
- $24.71
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical

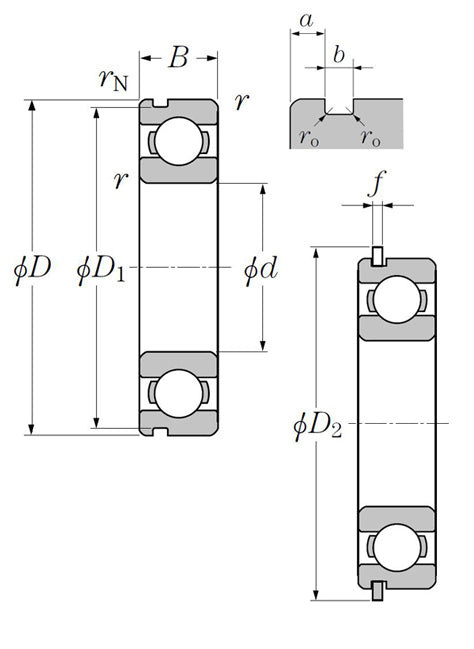

| --- | = | Bearing dimensions |
| d | = | 20mm |
| D | = | 47mm |
| B | = | 14mm |
| r< | = | sub> |
| s< | = | /sub> |
| min | = | 1mm |
| rNS Min. | = | 0.5mm |
| --- | = | Loads angles and speeds |
| C< | = | sub> |
| r< | = | /sub> |
| = | 14.2 kN | |
| C< | = | sub> |
| or< | = | /sub> |
| = | 6.65 kN | |
| C< | = | sub> |
| u< | = | /sub> |
| = | 0.505 kN | |
| f< | = | sub> |
| 0< | = | /sub> |
| = | 13.2 kN | |
| Grease | = | 16000 rpm |
| Oil | = | 18000 rpm |
| --- | = | Snap Ring Dimensions |
| D< | = | sub> |
| 1< | = | /sub> |
| Max. | = | 44.6mm |
| a Max. | = | 2.46mm |
| b Min. | = | 1.35mm |
| r< | = | sub> |
| o< | = | /sub> |
| Max. | = | 0.4mm |
| D< | = | sub> |
| 2< | = | /sub> |
| Max. | = | 52.7mm |
| f Max. | = | 1.12mm |

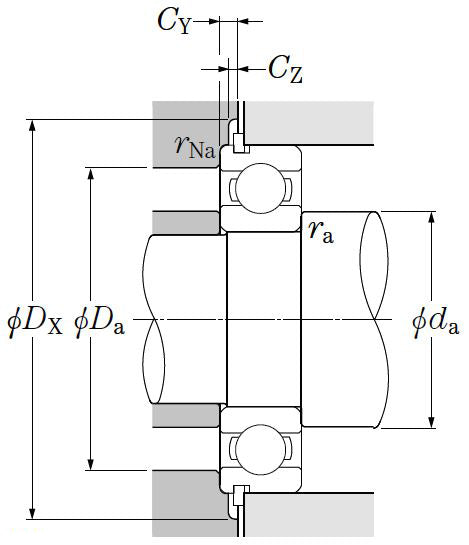

| --- | = | Fitting Dimensions |
| d< | = | sub> |
| a< | = | /sub> |
| Min. | = | 25mm |
| d< | = | sub> |
| a< | = | /sub> |
| Max. | = | 28mm |
| D< | = | sub> |
| a< | = | /sub> |
| Max. | = | 42mm |
| D< | = | sub> |
| X< | = | /sub> |
| (approx) | = | 53.5mm |
| C< | = | sub> |
| Y< | = | /sub> |
| Max. | = | 3.3mm |
| C< | = | sub> |
| Z< | = | /sub> |
| Min. | = | 1.2mm |
| r< | = | sub> |
| as< | = | /sub> |
| Max. | = | 1mm |
| r< | = | sub> |
| Nas< | = | /sub> |
| Max. | = | 0.5mm |
| Weight | = | 0.106 kg |
