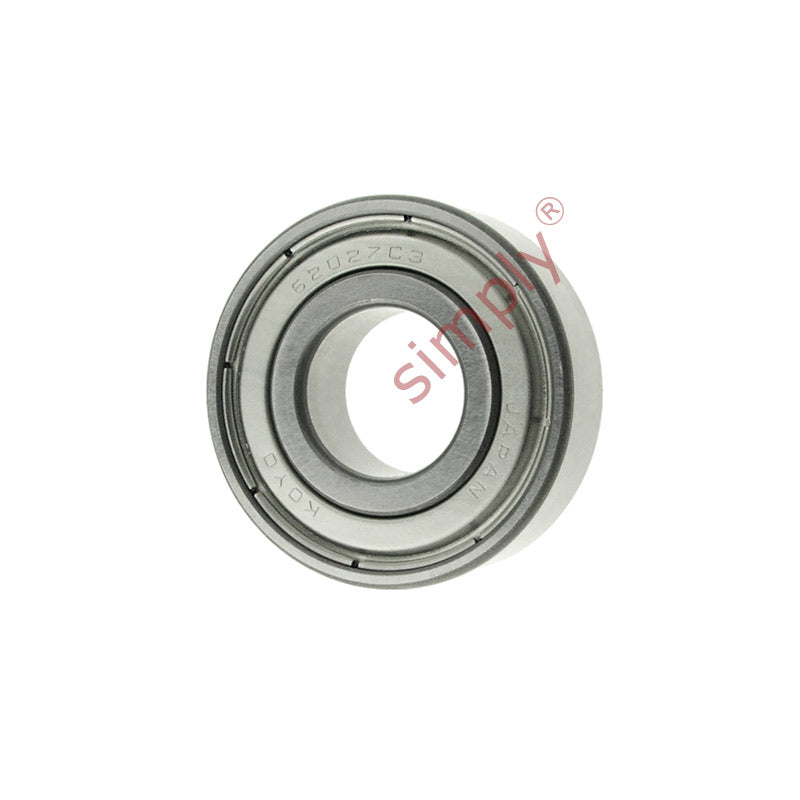

KOYO 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Koyo
KOYO 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Koyo

SKU: 6202-2Z/C3-KOY

KOYO 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm

$7.28 ex VAT
$7.28
ex VAT
Equivalent to: 6202ZZEC3 6202ZZC3 6202.2ZC3 6202KDDC3 6202DDC3 62022ZRC3 6202FFC3
In stock

Quantity Price Breaks

10+ $6.48
19+ $6.12
29+ $6.04
39+ $5.97
49+ $5.90
74+ $5.82
99+ $5.46
199+ $5.39
249+ $5.31
499+ $5.24
999+ $5.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
KOYO 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Koyo
SKU: 6202-2Z/C3-KOY

KOYO 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm

$7.28 ex VAT
$7.28
ex VAT

Description

KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be easily removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost effective solution

Technical

Inside Diameter d = 15mm
Outside Diameter D = 35mm
Width B = 11mm
Min radius r = 0.6mm
Dynamic load = 7.65 kN
Static load = 3.75 kN
Max speed in oil = 24000 rpm
Max speed in grease = 13000 rpm
