SKU: 60-3-SYN-NO26-RENOLD
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
Not in stock
Quantity Price Breaks
2
$39.96
5
$37.72
10
$37.27
29
$36.82
49
$36.37
75
$35.92
100
$33.68
200
$33.23
250
$32.78
500
$32.33
1000
$31.43
SKU:
60-3-SYN-NO26-RENOLD
Renold Synergy 60-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
Description

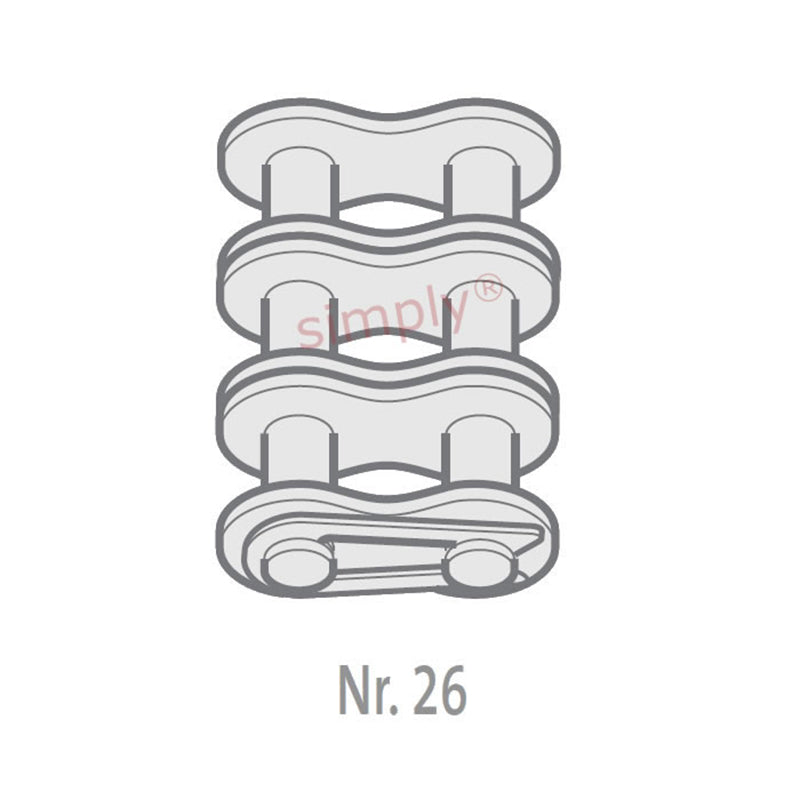

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 70.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 93900 N |
| Weight | = | 0.01kg/m |
