SKU: 60-2-BB-NO26-RENOLD
Renold Blue Box 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- $15.87 ex VAT
- Sale price
- $15.87
- Regular price
-
In stock
Quantity Price Breaks
2
$14.12
5
$13.33
10
$13.17
29
$13.01
49
$12.85
75
$12.70
100
$11.90
200
$11.74
250
$11.59
500
$11.43
1000
$11.11
SKU:
60-2-BB-NO26-RENOLD
Renold Blue Box 60-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- $15.87 ex VAT
- Sale price
- $15.87
- Regular price
-
Description

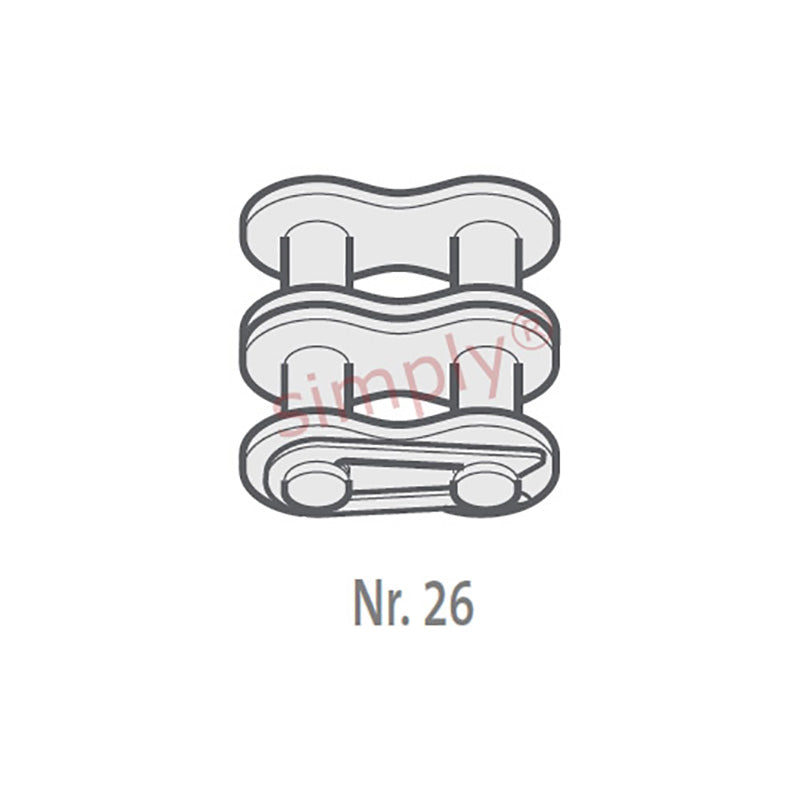

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 48.1mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 62600 N |
| Weight | = | 0.01kg/m |
