SKU: 53306+U306-SKF

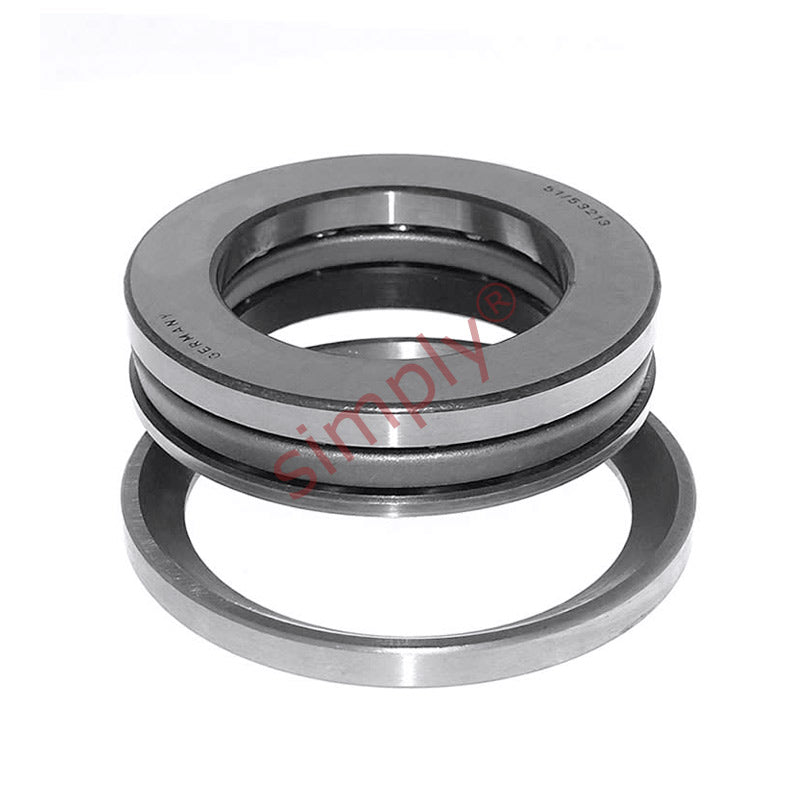

SKF 53306 Single Thrust Ball Bearing with Spherical Housing Seat U306 30x60x25mm
- Regular price
- $115.13 ex VAT
- Sale price
- $115.13
- Regular price
-
In stock
Quantity Price Breaks
10
$102.47
19
$96.71
29
$95.56
39
$94.41
49
$93.26
74
$92.10
99
$86.35
199
$85.20
249
$84.04
499
$82.89
999
$80.59
SKU:
53306+U306-SKF
SKF 53306 Single Thrust Ball Bearing with Spherical Housing Seat U306 30x60x25mm
- Regular price
- $115.13 ex VAT
- Sale price
- $115.13
- Regular price
-
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 30mm |
| D | = | 60mm |
| H1 | = | 25mm |
| Dynamic load C | = | 37.7 kN |
| Static load Co | = | 71 kN |
| Fatigue load limit Pu | = | 2.65 kN |
| Minimum load factor A | = | 0.026 |
| Reference speed | = | 3800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 0.33 kg |
| Seating washer | = | U306 |
| d1 | = | 60mm |
| D1 | = | 32mm |
| D2 | = | 45mm |
| D3 | = | 62mm |
| H | = | 22.6mm |
| C | = | 7mm |
| R | = | 50mm |
| s | = | 22mm |
| r1r2 min | = | 1mm |
| da max | = | 48mm |
| Da max | = | 45mm |
| ra max | = | 1mm |
