SKU: 53220+U220-SKF

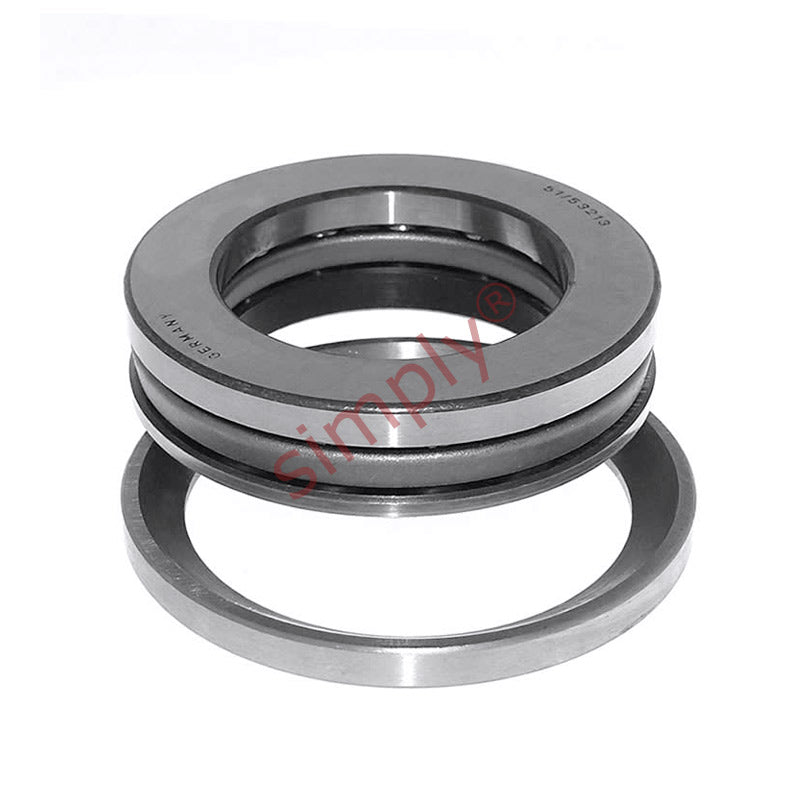

SKF 53220 Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
- Regular price
- $516.36 ex VAT
- Sale price
- $516.36
- Regular price
-
Not in stock
Quantity Price Breaks
10
$459.56
19
$433.74
29
$428.58
39
$423.42
49
$418.25
74
$413.09
99
$387.27
199
$382.11
249
$376.94
499
$371.78
999
$361.45
SKU:
53220+U220-SKF
SKF 53220 Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
- Regular price
- $516.36 ex VAT
- Sale price
- $516.36
- Regular price
-
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 100mm |
| D | = | 150mm |
| H1 | = | 45mm |
| Dynamic load C | = | 124 kN |
| Static load Co | = | 345 kN |
| Fatigue load limit Pu | = | 11.4 kN |
| Minimum load factor A | = | 0.62 |
| Reference speed | = | 1800 rpm |
| Limiting speed | = | 2400 rpm |
| Weight | = | 2.7 kg |
| Seating washer | = | U220 |
| d1 | = | 150mm |
| D1 | = | 103mm |
| D2 | = | 125mm |
| D3 | = | 155mm |
| H | = | 40.9mm |
| C | = | 14mm |
| R | = | 112mm |
| s | = | 52mm |
| r1r2 min | = | 1.1mm |
| da max | = | 130mm |
| Da max | = | 125mm |
| ra max | = | 1mm |
