SKU: 51317-CDX

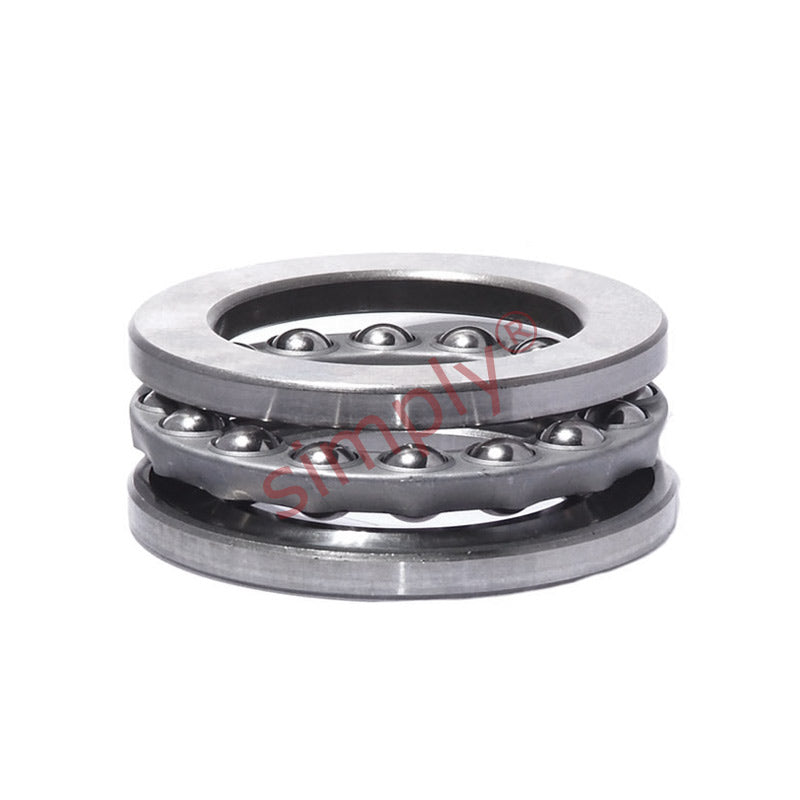

Codex 51317 Single Thrust Ball Bearing 85x150x49mm
- Regular price
- $284.57 ex VAT
- Sale price
- $284.57
- Regular price
-
In stock
Quantity Price Breaks
10
$253.27
19
$239.04
29
$236.19
39
$233.35
49
$230.50
74
$227.66
99
$213.43
199
$210.58
249
$207.74
499
$204.89
999
$199.20
SKU:
51317-CDX
Codex 51317 Single Thrust Ball Bearing 85x150x49mm
- Regular price
- $284.57 ex VAT
- Sale price
- $284.57
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 85 |
| D | = | 150 |
| H | = | 49 |
| Dynamic Load | = | 190 kN |
| Static Load | = | 465 kN |
| Pu | = | 16 |
| A | = | 1.1 |
| Ref Speed | = | 1600 rpm |
| Limiting Speed | = | 2200 rpm |
| kg | = | 3.55 |
| d1 | = | 150 |
| D1 | = | 88 |
| r1r2 min | = | 1.5 |
| da min | = | 124 |
| Da max | = | 111 |
| ra max | = | 1.5 |
