SKU: 51120-EU

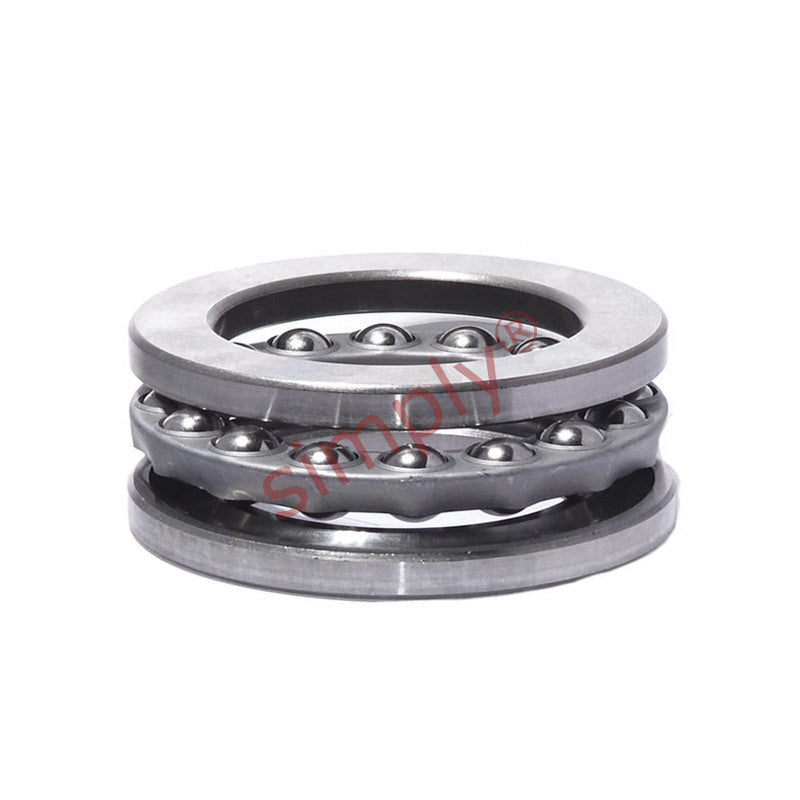

51120 Budget Single Thrust Ball Bearing 100x135x25mm
- Regular price
- $63.23 ex VAT
- Sale price
- $63.23
- Regular price
-
In stock
Quantity Price Breaks
10
$56.27
19
$53.11
29
$52.48
39
$51.85
49
$51.22
74
$50.58
99
$47.42
199
$46.79
249
$46.16
499
$45.53
999
$44.26
SKU:
51120-EU
51120 Budget Single Thrust Ball Bearing 100x135x25mm
- Regular price
- $63.23 ex VAT
- Sale price
- $63.23
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 100mm |
| D | = | 135mm |
| H | = | 25mm |
| Dynamic load C | = | 85.2 kN |
| Static load Co | = | 290 kN |
| Fatigue load limit Pu | = | 10 kN |
| Minimum load factor A | = | 0.44 |
| Reference speed | = | 2400 rpm |
| Limiting speed | = | 3200 rpm |
| Weight | = | 0.97 kg |
| d1 | = | 135mm |
| D1 | = | 102mm |
| r1r2 min | = | 1mm |
| da min | = | 121mm |
| Da max | = | 114mm |
| ra max | = | 1mm |
