SKU: 51109-CDX

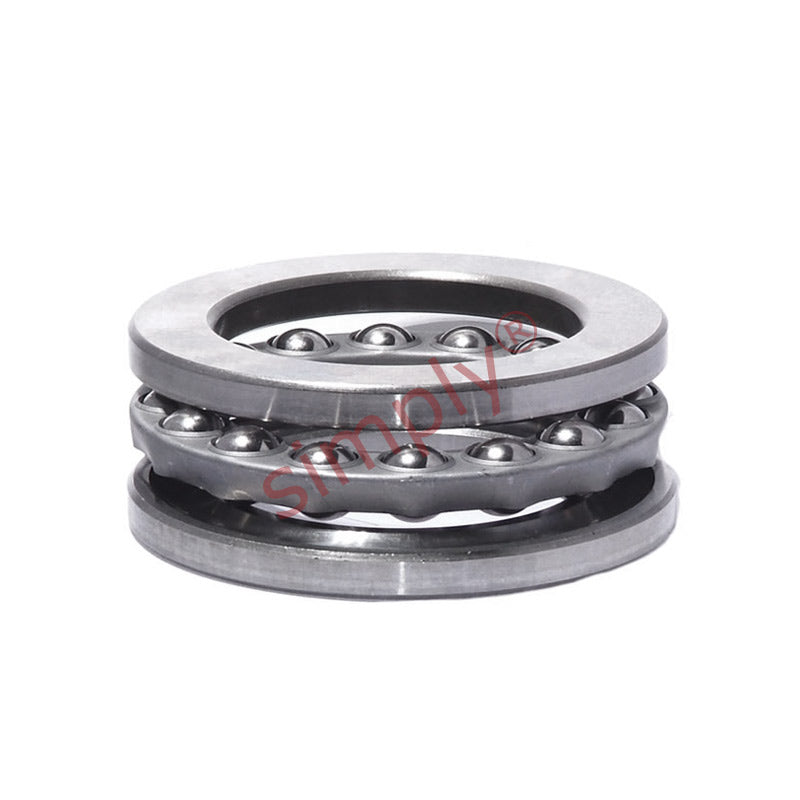

Codex 51109 Single Thrust Ball Bearing 45x65x14mm
- Regular price
- $22.32 ex VAT
- Sale price
- $22.32
- Regular price
-
In stock
Quantity Price Breaks
10
$19.86
19
$18.75
29
$18.53
39
$18.30
49
$18.08
74
$17.86
99
$16.74
199
$16.52
249
$16.29
499
$16.07
999
$15.62
SKU:
51109-CDX
Codex 51109 Single Thrust Ball Bearing 45x65x14mm
- Regular price
- $22.32 ex VAT
- Sale price
- $22.32
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 45 |
| D | = | 65 |
| H | = | 14 |
| Dynamic Load | = | 26.5 kN |
| Static Load | = | 69.5 kN |
| Pu | = | 2.55 |
| A | = | 0.025 |
| Ref Speed | = | 4500 rpm |
| Limiting Speed | = | 6300 rpm |
| kg | = | 0.14 |
| d1 | = | 65 |
| D1 | = | 47 |
| r1r2 min | = | 0.6 |
| da min | = | 57 |
| Da max | = | 53 |
| ra max | = | 0.6 |
