SKU: 50-3-SYN-NO26-RENOLD
Renold Synergy 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $38.48 ex VAT
- Sale price
- $38.48
- Regular price
-
Not in stock
Quantity Price Breaks
2
$34.25
5
$32.32
10
$31.94
29
$31.55
49
$31.17
75
$30.78
100
$28.86
200
$28.48
250
$28.09
500
$27.71
1000
$26.94
SKU:
50-3-SYN-NO26-RENOLD
Renold Synergy 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $38.48 ex VAT
- Sale price
- $38.48
- Regular price
-
Description

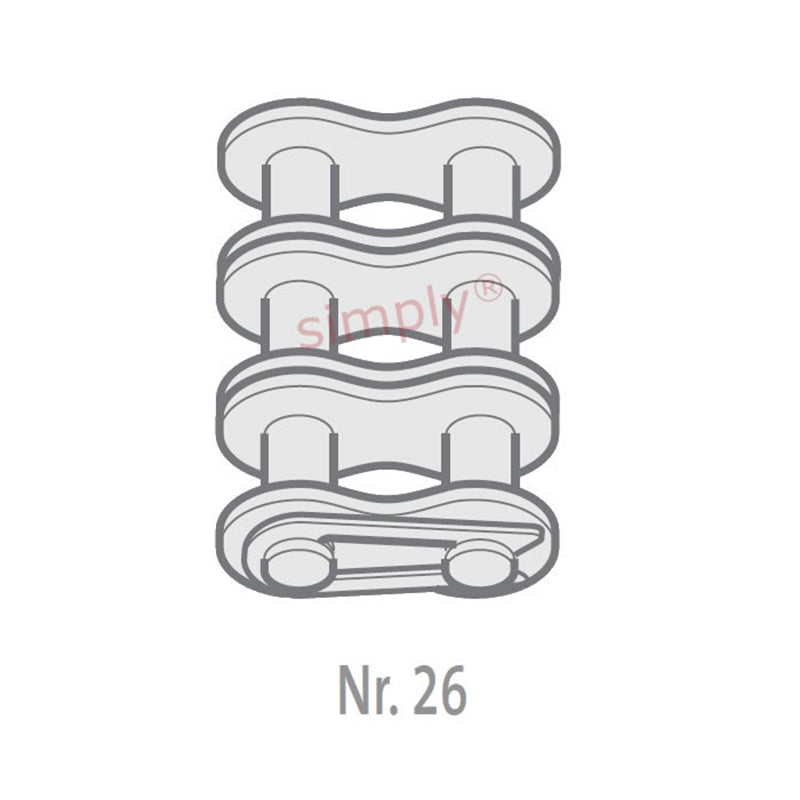

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 56.5mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 65400 N |
| Weight | = | 0.01kg/m |
