SKU: 50-2-SD-NO26-RENOLD

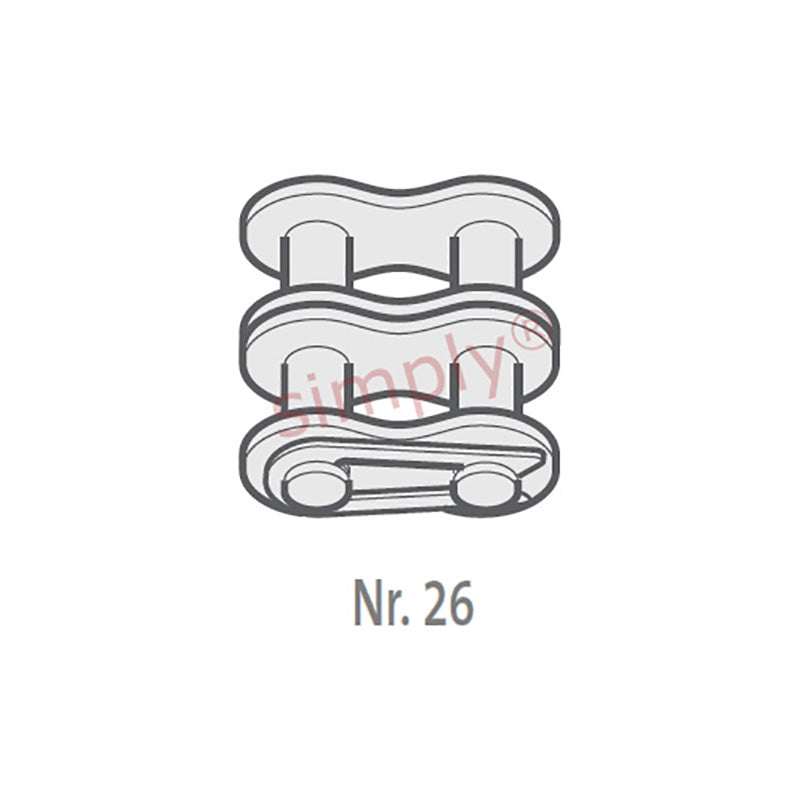

Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $8.71 ex VAT
- Sale price
- $8.71
- Regular price
-
In stock
Quantity Price Breaks
10+
$7.75
19+
$7.32
29+
$7.23
39+
$7.14
49+
$7.06
74+
$6.97
99+
$6.53
199+
$6.45
249+
$6.36
499+
$6.27
999+
$6.10
SKU:
50-2-SD-NO26-RENOLD
Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $8.71 ex VAT
- Sale price
- $8.71
- Regular price
-
Description
ANSI_NO26D_DESC
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 15.09mm |
| Plate Width Inner max (E) | = | 2mm |
| Plate Width Outer max (F) | = | 2mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 39mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
