SKU: 50-2-BB-NO30-RENOLD

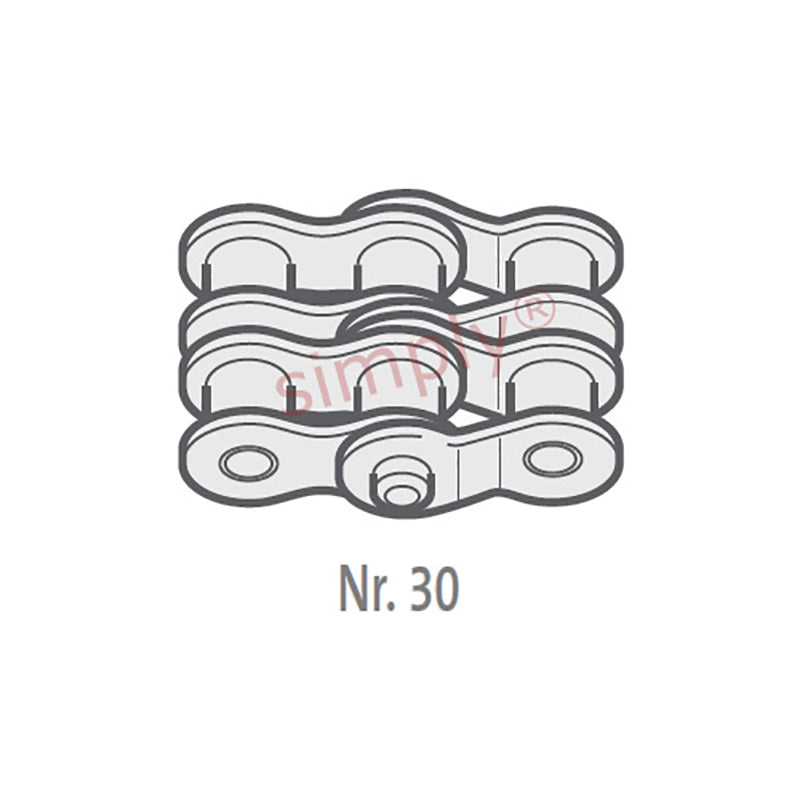

Renold Blue Box 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $27.56 ex VAT
- Sale price
- $27.56
- Regular price
-
In stock
Quantity Price Breaks
2
$24.53
5
$23.15
10
$22.87
29
$22.60
49
$22.32
75
$22.05
100
$20.67
200
$20.39
250
$20.12
500
$19.84
1000
$19.29
SKU:
50-2-BB-NO30-RENOLD
Renold Blue Box 50-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $27.56 ex VAT
- Sale price
- $27.56
- Regular price
-
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
