SKU: 50-1-BB-NO11-RENOLD
Renold Blue Box 50-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- $8.54 ex VAT
- Sale price
- $8.54
- Regular price
-
In stock
Quantity Price Breaks
2
$7.60
5
$7.17
10
$7.09
29
$7.00
49
$6.92
75
$6.83
100
$6.41
200
$6.32
250
$6.23
500
$6.15
1000
$5.98
SKU:
50-1-BB-NO11-RENOLD
Renold Blue Box 50-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- $8.54 ex VAT
- Sale price
- $8.54
- Regular price
-
Description

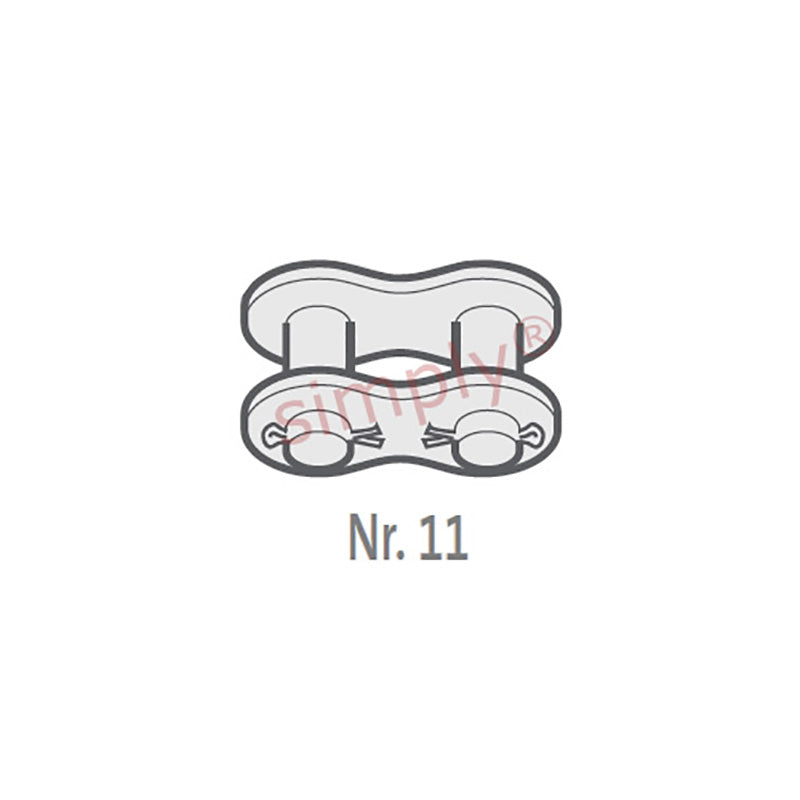

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 20.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| ISO606 Tensile Strength min | = | 21800 N |
| Weight | = | 0.015kg/m |
