SKU: 40-3-SYN-NO30-RENOLD

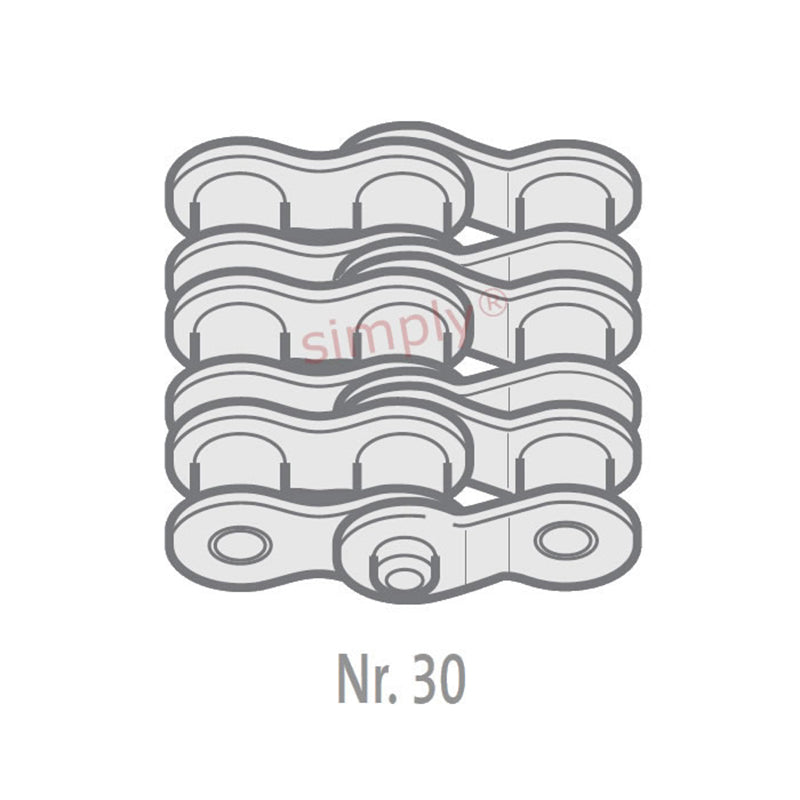

Renold Synergy 40-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $79.37 ex VAT
- Sale price
- $79.37
- Regular price
-
Not in stock
Quantity Price Breaks
2
$70.64
5
$66.67
10
$65.88
29
$65.08
49
$64.29
75
$63.50
100
$59.53
200
$58.73
250
$57.94
500
$57.15
1000
$55.56
SKU:
40-3-SYN-NO30-RENOLD
Renold Synergy 40-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $79.37 ex VAT
- Sale price
- $79.37
- Regular price
-
Description
| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 45.1mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 41700 N |
| Weight | = | 0.02kg/m |
