SKU: 40-3-SYN-NO26-RENOLD
Renold Synergy 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $41.69 ex VAT
- Sale price
- $41.69
- Regular price
-
Not in stock
Quantity Price Breaks
2
$37.10
5
$35.02
10
$34.60
29
$34.19
49
$33.77
75
$33.35
100
$31.27
200
$30.85
250
$30.43
500
$30.02
1000
$29.18
SKU:
40-3-SYN-NO26-RENOLD
Renold Synergy 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $41.69 ex VAT
- Sale price
- $41.69
- Regular price
-
Description

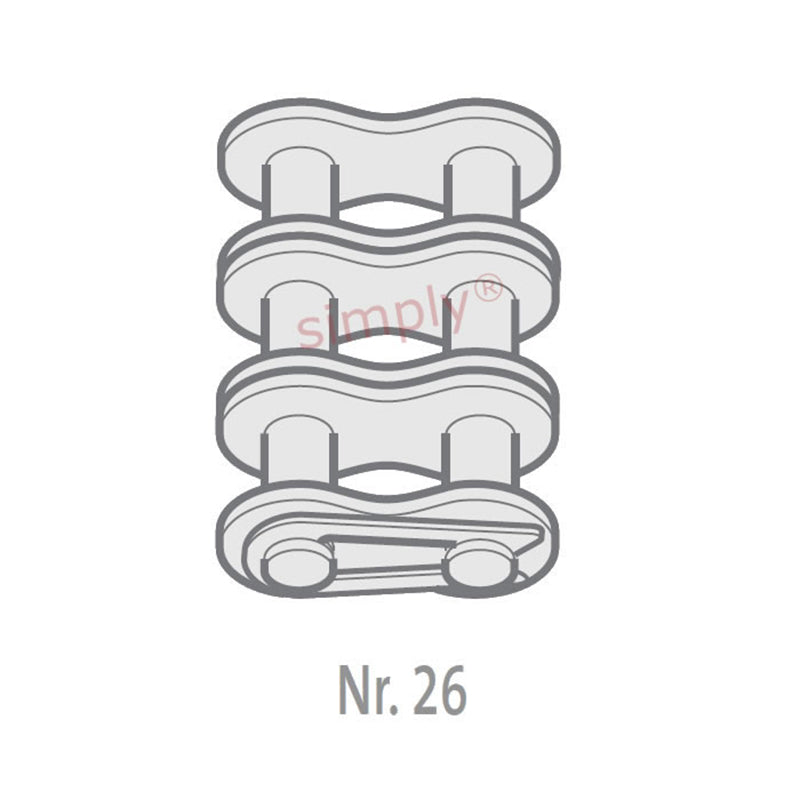

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 45.1mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 41700 N |
| Weight | = | 0.02kg/m |
