SKU: 40-2-SD-NO26-RENOLD

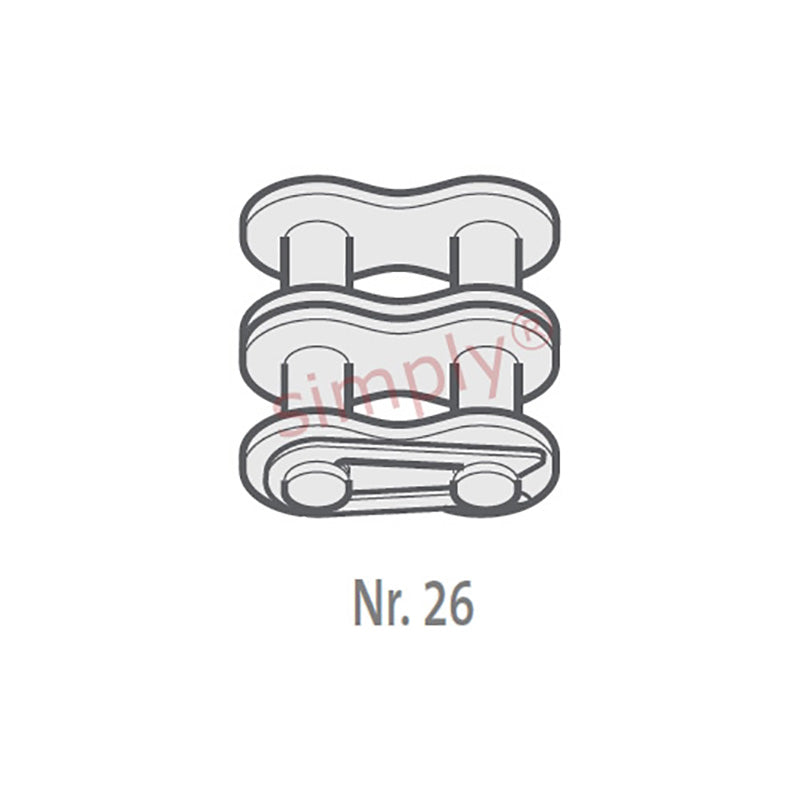

Renold SD 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $8.13 ex VAT
- Sale price
- $8.13
- Regular price
-
In stock
Quantity Price Breaks
10+
$7.24
19+
$6.83
29+
$6.75
39+
$6.67
49+
$6.59
74+
$6.50
99+
$6.10
199+
$6.02
249+
$5.93
499+
$5.85
999+
$5.69
SKU:
40-2-SD-NO26-RENOLD
Renold SD 40-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $8.13 ex VAT
- Sale price
- $8.13
- Regular price
-
Description
ANSI_NO26D_DESC
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.95mm |
| Plate Height max (D) | = | 11.9mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 31.1mm |
| Connecting Link Extension max (J) | = | 1.15mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
