SKU: 40-1-BB-NO30-RENOLD
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $14.59 ex VAT
- Sale price
- $14.59
- Regular price
-
Not in stock
Quantity Price Breaks
2
$12.99
5
$12.26
10
$12.11
29
$11.96
49
$11.82
75
$11.67
100
$10.94
200
$10.80
250
$10.65
500
$10.50
1000
$10.21
SKU:
40-1-BB-NO30-RENOLD
Renold Blue Box 40-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $14.59 ex VAT
- Sale price
- $14.59
- Regular price
-
Description

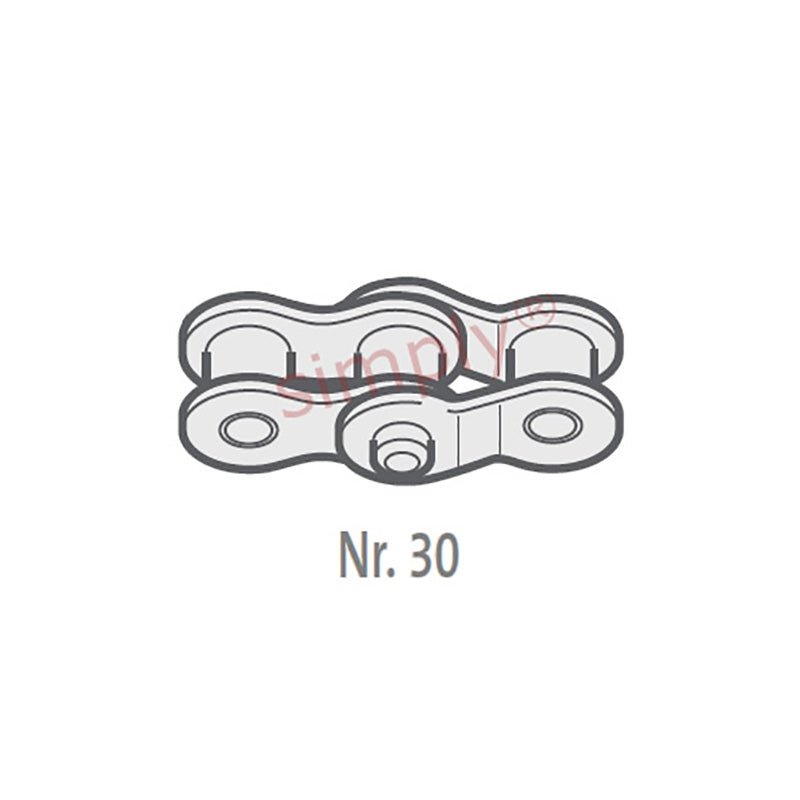

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.96mm |
| Pin Length max (H2) | = | 16.4mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 13900 N |
| Weight | = | 0.01kg/m |
