SKU: 388XL-025-194

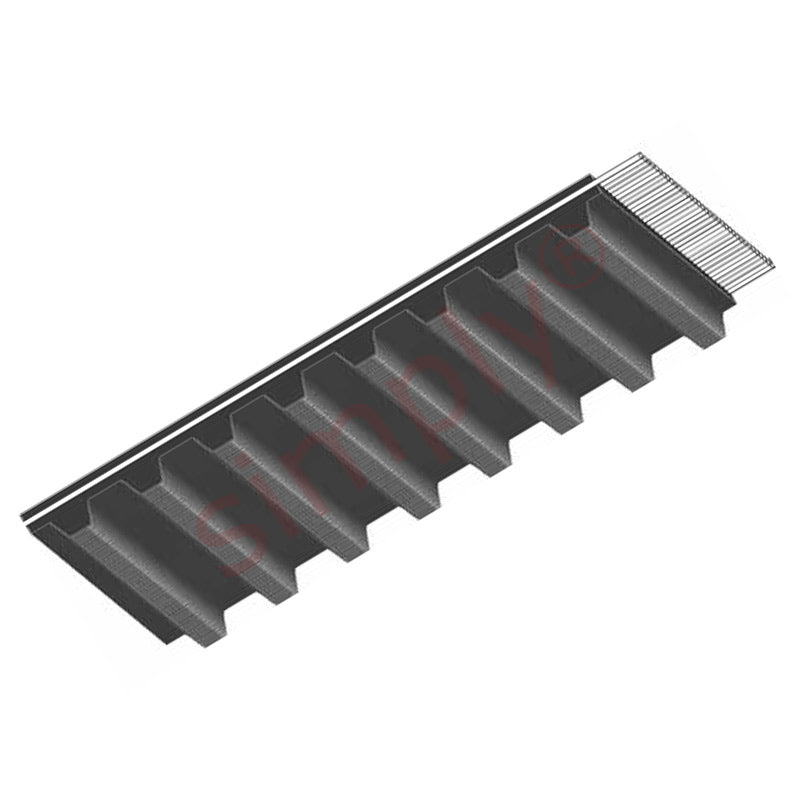

388XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 38.8 inch Length 194 Teeth Allow 2-3 Days
- Regular price
- $15.04 ex VAT
- Sale price
- $15.04
- Regular price
-
Not in stock
Quantity Price Breaks
3
$13.39
5
$12.63
10
$12.48
15
$12.33
20
$12.18
30
$12.03
40
$11.28
50
$11.13
60
$10.98
75
$10.83
100
$10.53
SKU:
388XL-025-194
388XL025 Major Brand Synchronous Toothed Belt 0.25 inch Wide 38.8 inch Length 194 Teeth Allow 2-3 Days
- Regular price
- $15.04 ex VAT
- Sale price
- $15.04
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 0.25 inch = 6.35mm |
| Pitch length | = | 38.8 inch = 985.52mm |
| Number of teeth | = | 194 |
| Tooth pitch t | = | 0.2 inch |
| Flank angle f | = | 50 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.05 inch | |
| Pitch zone u | = | 0.01 inch |
