SKU: 368A/362A-CDX

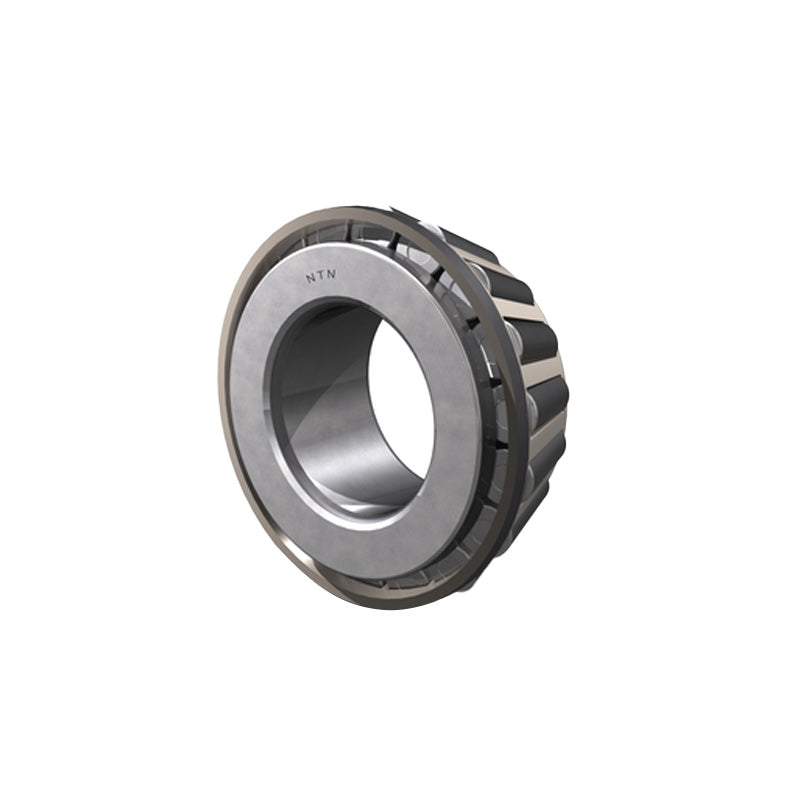

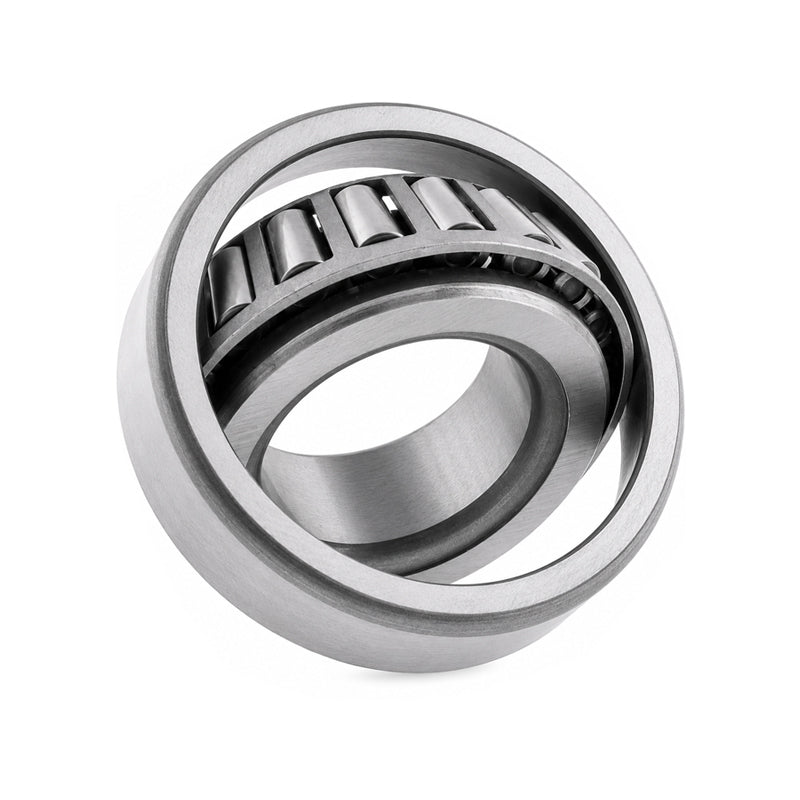

Codex 368A/362A Imperial Taper Roller Bearing 2x3.5x0.8125 inch
- Regular price
- $34.77 ex VAT
- Sale price
- $34.77
- Regular price
-
In stock
Quantity Price Breaks
10+
$30.95
19+
$29.21
29+
$28.86
39+
$28.51
49+
$28.16
74+
$27.82
99+
$26.08
199+
$25.73
249+
$25.38
499+
$25.03
999+
$24.34
SKU:
368A/362A-CDX
Codex 368A/362A Imperial Taper Roller Bearing 2x3.5x0.8125 inch
- Regular price
- $34.77 ex VAT
- Sale price
- $34.77
- Regular price
-
Description
|
Codex Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Technical
| d | = | 2 inch |
| D | = | 3.5 inch |
| T | = | 0.8125 inch |
| Dynamic load | = | 76.5 kN |
| Static load | = | 91.5 kN |
| Fatigue load limit Pu | = | 10.4 |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 8000 rpm |
| Weight | = | 0.5 kg |
| d1 | = | 66.2mm |
| B | = | 22.225mm |
| C | = | 16.513mm |
| r1r2 min | = | 3.5mm |
| r3r4 min | = | 1.3mm |
| a | = | 16mm |
| da max | = | 58mm |
| db min | = | 62mm |
| Da min | = | 80mm |
| Da max | = | 82.5mm |
| Db min | = | 83mm |
| Ca min | = | 4mm |
| Cb min | = | 4mm |
| ra max | = | 3mm |
| rb max | = | 1.3mm |
| e | = | 0.31 |
| Y | = | 1.9 |
| Y0 | = | 1.1 |
