SKU: 35-3-BB-NO26-RENOLD
Renold Blue Box 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $17.07 ex VAT
- Sale price
- $17.07
- Regular price
-
In stock
Quantity Price Breaks
2
$15.19
5
$14.34
10
$14.17
29
$14.00
49
$13.83
75
$13.66
100
$12.80
200
$12.63
250
$12.46
500
$12.29
1000
$11.95
SKU:
35-3-BB-NO26-RENOLD
Renold Blue Box 35-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $17.07 ex VAT
- Sale price
- $17.07
- Regular price
-
Description

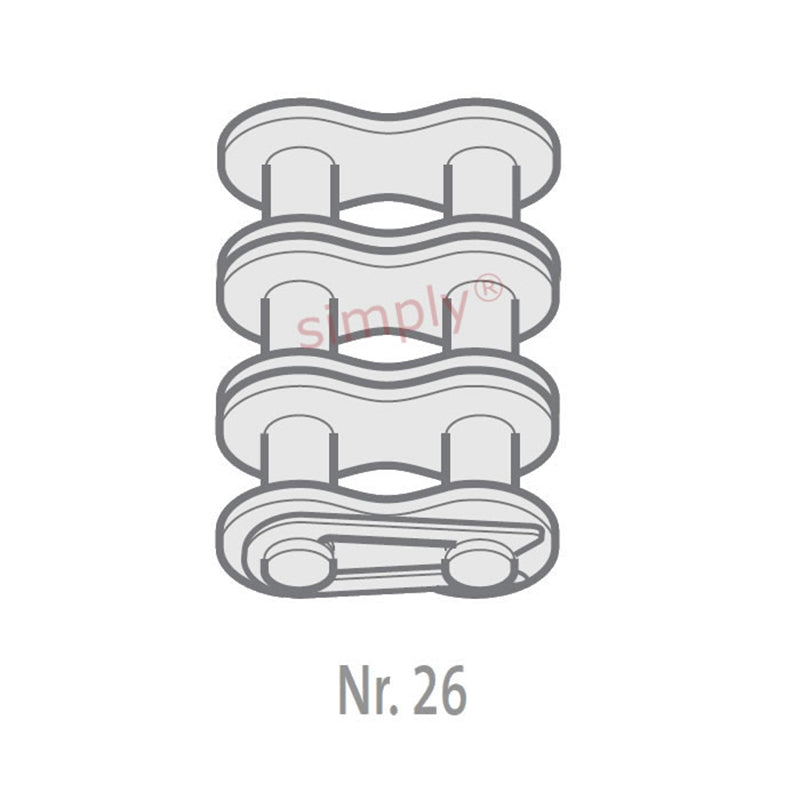

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.68mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.6mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.29mm |
| Pin Diameter max (G) | = | 3.59mm |
| Pin Length max (H2) | = | 32.2mm |
| Connecting Link Extension max (J) | = | 1.7mm |
| Transverse Pitch nom (K) | = | 10.13mm |
| ISO606 Tensile Strength min | = | 23700 N |
| Weight | = | 1.8kg/m |
