SKU: 35-1-BB-NO30-RENOLD
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $13.46 ex VAT
- Sale price
- $13.46
- Regular price
-
In stock
Quantity Price Breaks
2
$11.98
5
$11.31
10
$11.17
29
$11.04
49
$10.90
75
$10.77
100
$10.10
200
$9.96
250
$9.83
500
$9.69
1000
$9.42
SKU:
35-1-BB-NO30-RENOLD
Renold Blue Box 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $13.46 ex VAT
- Sale price
- $13.46
- Regular price
-
Description

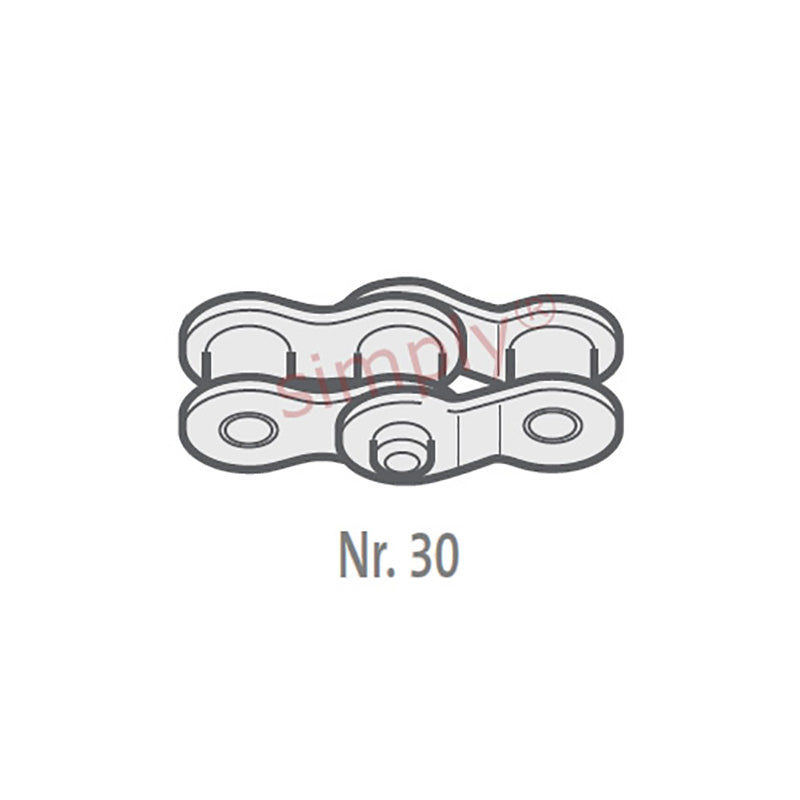

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 16.4mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| ISO606 Tensile Strength min | = | 13900 N |
| Weight | = | 0.008kg/m |
