SKU: 3308-2Z-EU

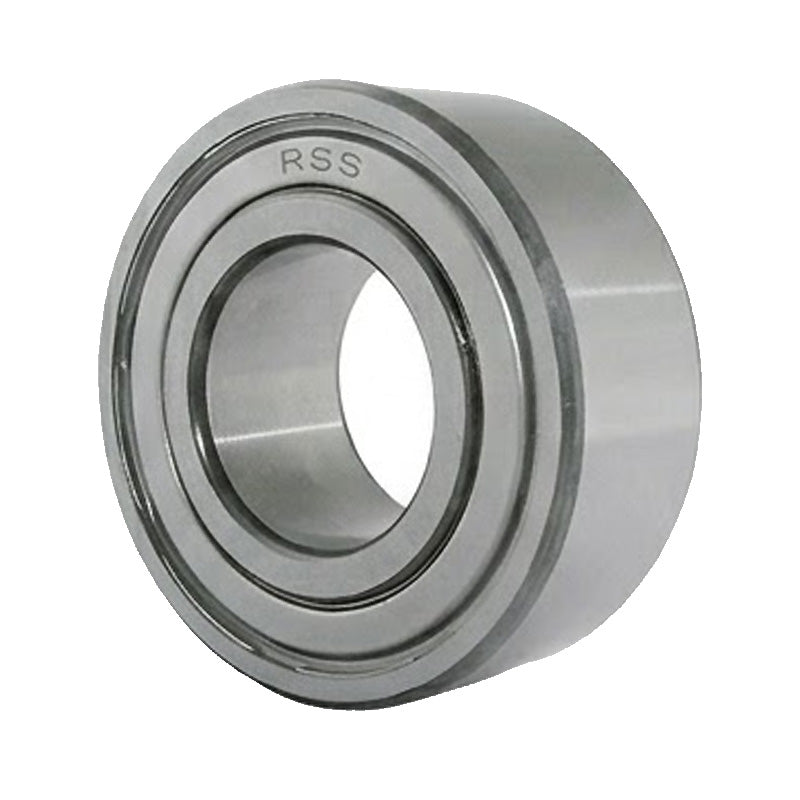

33082Z Budget Shielded Double Row Angular Contact Ball Bearing 40x90x36.5mm
- Regular price
- $61.56 ex VAT
- Sale price
- $61.56
- Regular price
-
In stock
Quantity Price Breaks
10
$54.79
19
$51.71
29
$51.09
39
$50.48
49
$49.86
74
$49.25
99
$46.17
199
$45.55
249
$44.94
499
$44.32
999
$43.09
SKU:
3308-2Z-EU
33082Z Budget Shielded Double Row Angular Contact Ball Bearing 40x90x36.5mm
- Regular price
- $61.56 ex VAT
- Sale price
- $61.56
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 36.5mm |
| Dynamic load C | = | 64 kN |
| Static load Co | = | 44 kN |
| Fatigue load limit Pu | = | 1.86 kN |
| Reference speed | = | 7500 rpm |
| Weight | = | 0.93 kg |
| d1 | = | 50.8mm |
| D1 | = | 80.5mm |
| r1r2 min | = | 1.5mm |
| a | = | 53mm |
| da min | = | 49mm |
| da max | = | 50.5mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
