SKU: 3205-EU

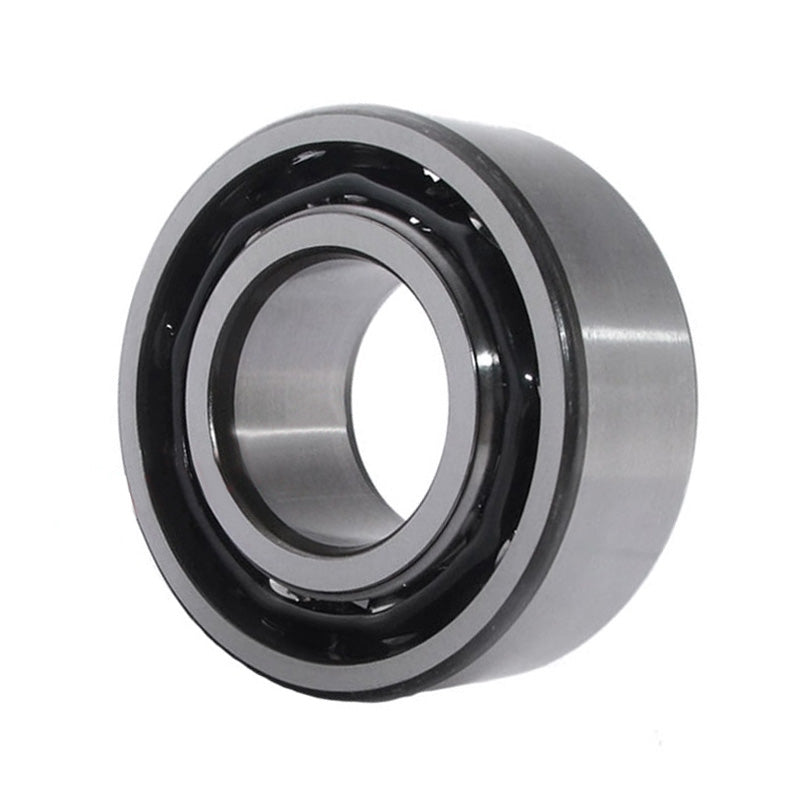

3205 Budget Double Row Angular Contact Ball Bearing 25x52x20.6mm
- Regular price
- $27.58 ex VAT
- Sale price
- $27.58
- Regular price
-
In stock
Quantity Price Breaks
10
$24.55
19
$23.17
29
$22.89
39
$22.62
49
$22.34
74
$22.06
99
$20.69
199
$20.41
249
$20.13
499
$19.86
999
$19.31
SKU:
3205-EU
3205 Budget Double Row Angular Contact Ball Bearing 25x52x20.6mm
- Regular price
- $27.58 ex VAT
- Sale price
- $27.58
- Regular price
-
Description
DRAC1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.

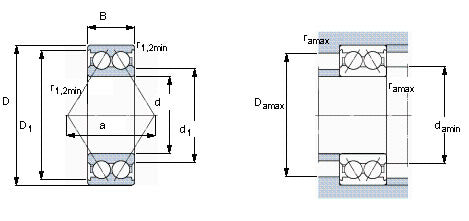

Technical
| d | = | 25mm |
| D | = | 52mm |
| B | = | 20.6mm |
| Dynamic load C | = | 21.6 kN |
| Static load Co | = | 14.3 kN |
| Fatigue load limit Pu | = | 0.6 kN |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.18 kg |
| d1 | = | 32.7mm |
| D1 | = | 45.9mm |
| r1r2 min | = | 1mm |
| a | = | 30mm |
| da min | = | 30.6mm |
| Da max | = | 46.4mm |
| ra max | = | 1mm |
