SKU: 3201-2RS-EU

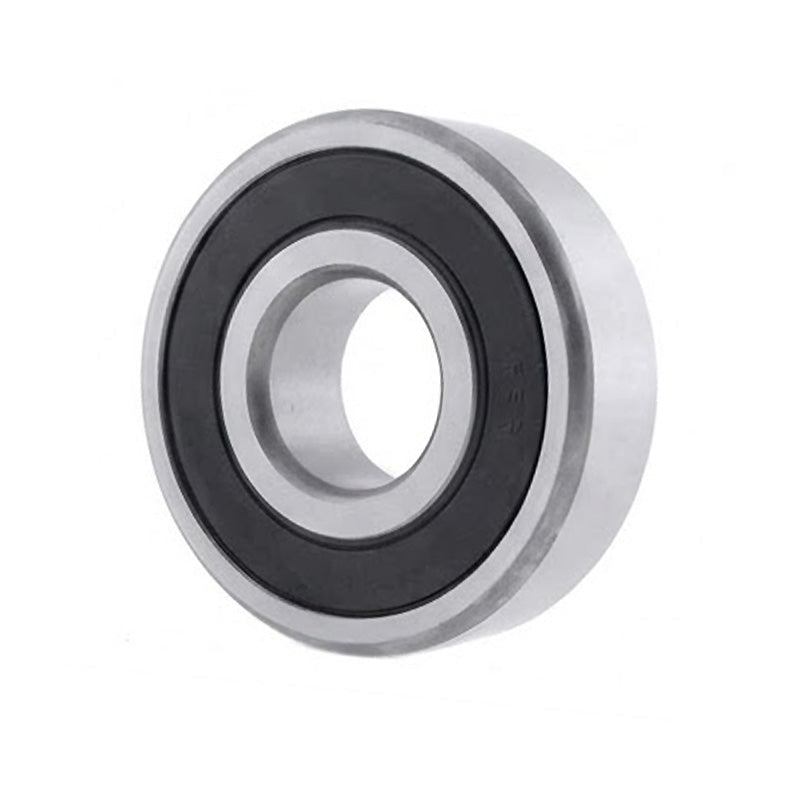

32012RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 12x32x15.9mm
- Regular price
- $22.02 ex VAT
- Sale price
- $22.02
- Regular price
-
In stock
Quantity Price Breaks
10
$19.60
19
$18.50
29
$18.28
39
$18.06
49
$17.84
74
$17.62
99
$16.52
199
$16.29
249
$16.07
499
$15.85
999
$15.41
SKU:
3201-2RS-EU
32012RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 12x32x15.9mm
- Regular price
- $22.02 ex VAT
- Sale price
- $22.02
- Regular price
-
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 12mm |
| D | = | 32mm |
| B | = | 15.9mm |
| Dynamic load C | = | 10.1 kN |
| Static load Co | = | 5.6 kN |
| Fatigue load limit Pu | = | 0.24 kN |
| Reference speed | = | 15000 rpm |
| Weight | = | 0.058 kg |
| d1 | = | 17.2mm |
| D1 | = | 27.7mm |
| r1r2 min | = | 0.6mm |
| a | = | 19mm |
| da min | = | 16.4mm |
| da max | = | 17mm |
| Da max | = | 27.7mm |
| ra max | = | 0.6mm |
