SKU: 305705C-2Z-EU

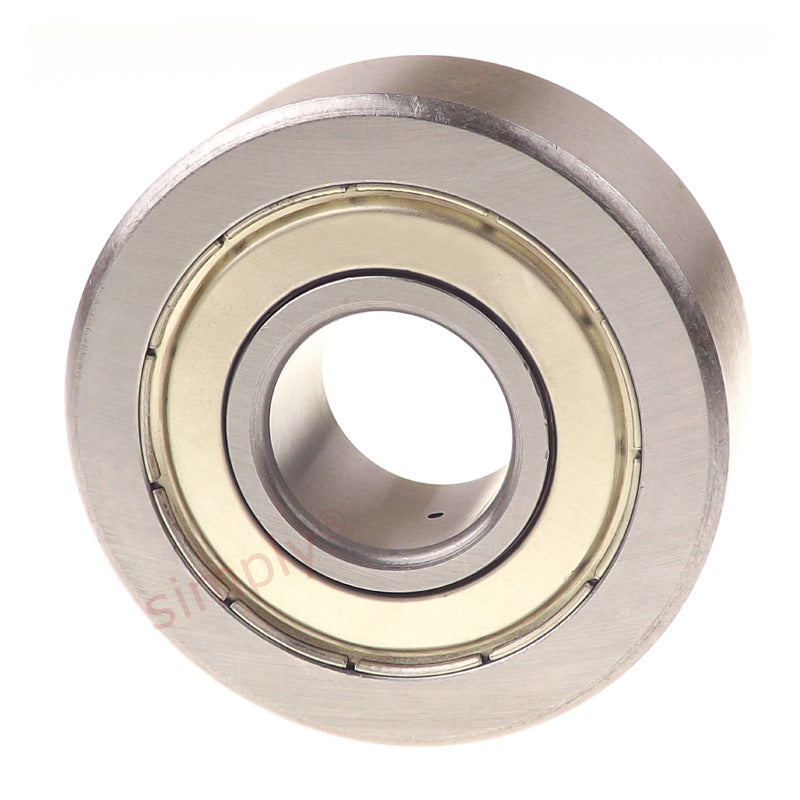

305705C2Z Budget Parallel Outer Double Row Cam Roller Bearing 25x62x20.6mm
- Regular price
- $37.60 ex VAT
- Sale price
- $37.60
- Regular price
-
Quantity Price Breaks
305705C2Z Budget Parallel Outer Double Row Cam Roller Bearing 25x62x20.6mm
- Regular price
- $37.60 ex VAT
- Sale price
- $37.60
- Regular price
-
Description
|
Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
Technical
| d | = | 25mm |
| D | = | 62mm |
| B | = | 20.6mm |
| d1 | = | 34.4mm |
| D1 | = | 45.9mm |
| r1r2 min | = | 1mm |
| a | = | 26.5mm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 0.32 kg |
| Dynamic load C | = | 19.5 kN |
| Static load Co | = | 12.5 kN |
| Fatigue load limit Pu | = | 0.53 kN |
| Maximum dynamic radial load Fr | = | 15.3 kN |
| Maximum static radial load For | = | 21.6 kN |
