SKU: 22218EAW33ZZ-SNR

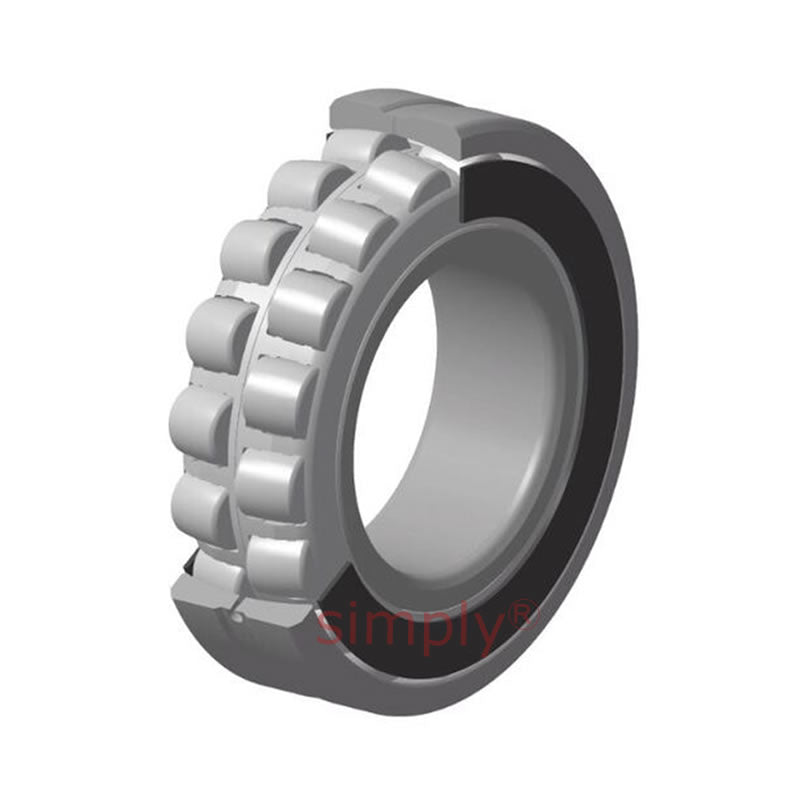

SNR 22218EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 90x160x40mm Allow 1 - 2 Days
- Regular price
- $328.06 ex VAT
- Sale price
- $328.06
- Regular price
-
In stock
Quantity Price Breaks
10+
$291.97
19+
$275.57
29+
$272.29
39+
$269.01
49+
$265.73
74+
$262.45
99+
$246.05
199+
$242.76
249+
$239.48
499+
$236.20
999+
$229.64
SKU:
22218EAW33ZZ-SNR
SNR 22218EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 90x160x40mm Allow 1 - 2 Days
- Regular price
- $328.06 ex VAT
- Sale price
- $328.06
- Regular price
-
Description
VC58RI90ZT
Technical
| --- | = | Bearing dimensions |
| d | = | 90mm |
| D | = | 160mm |
| B | = | 40mm |
| rs | = | 2mm |
| D1 | = | 143.2mm |
| d2 | = | 105.3mm |
| b | = | 10.2mm |
| k | = | 4.5mm |
| --- | = | Abutment dimensions |
| da min | = | 101mm |
| Da Max | = | 149mm |
| ra max | = | 2mm |
| Dynamic load Cr | = | 384kN |
| Static load Cor | = | 398kN |
| Fatigue load Cu | = | 43.1kn |
| --- | = | Calculation factors |
| e | = | 0.23 |
| Y1 | = | 2.9 |
| Y2 | = | 4.31 |
| YO | = | 2.83 |
| --- | = | Speeds and other information |
| Reference speed | = | 3900rpm |
| Limiting speed | = | 5100rpm |
| Internal clearance min | = | 60& |
| mu | = | m |
| Internal clearance max | = | 100& |
| mu | = | m |
| Initial grease addition mm< | = | sup> |
| 3< | = | /sup> |
| = | 34677 | |
| Lowest operating temperature | = | - 40deg C |
| Highest operating temperature | = | + 200deg C |
| Ultage series bearing | = | Yes |
| Weight | = | 3.39kg |
