SKU: 20TAC47BDBCPN7A-MB

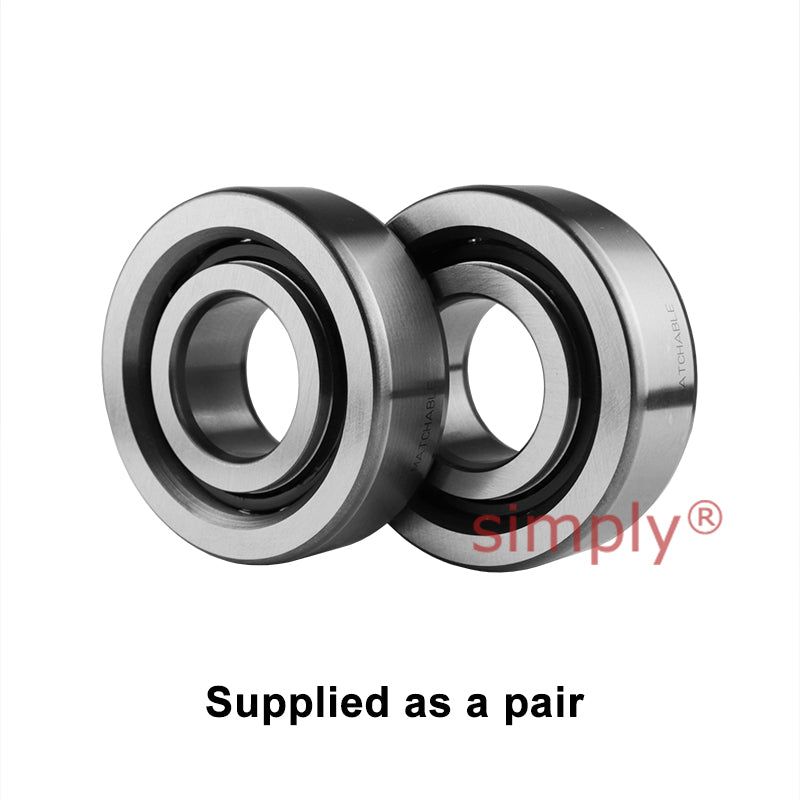

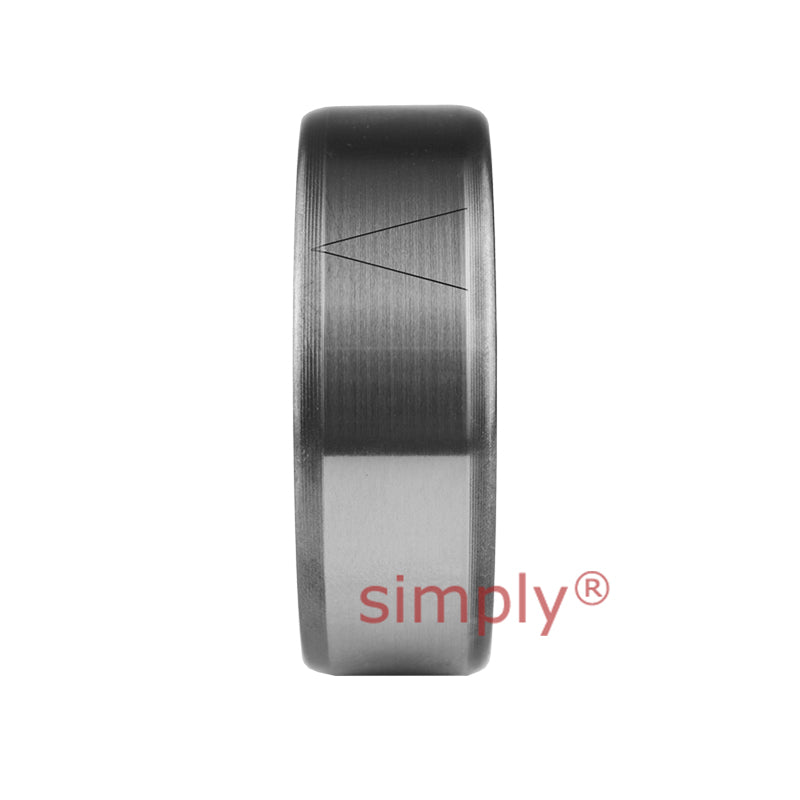

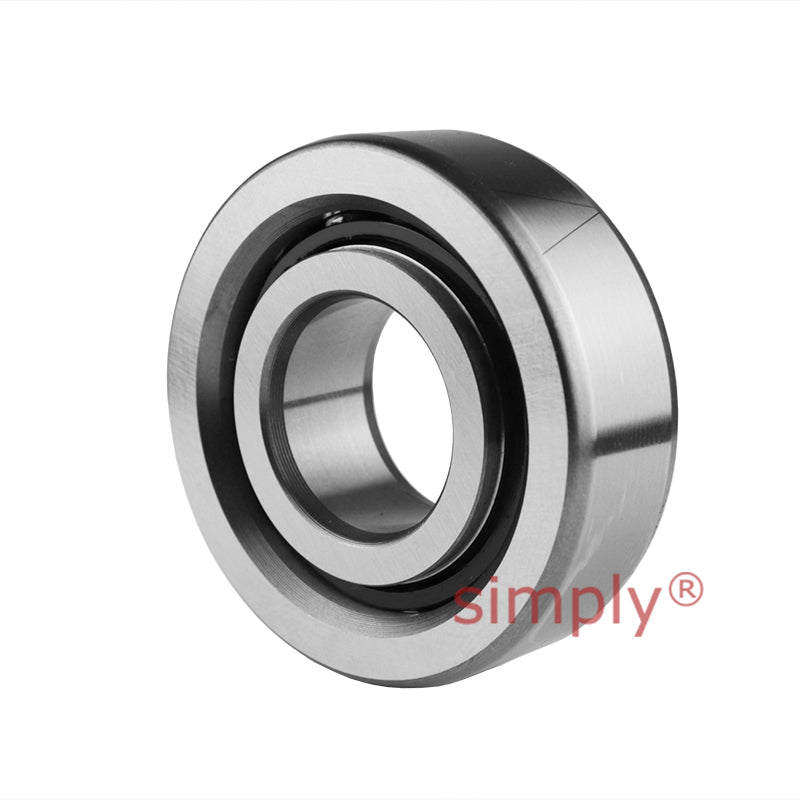

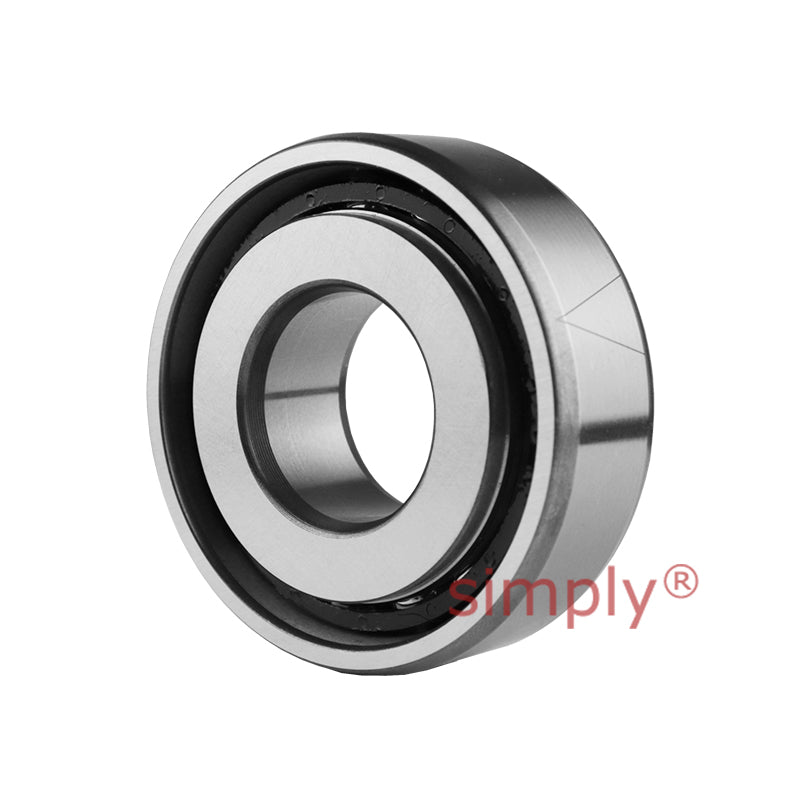

Major Branded Matched Pair Super Precision Angular Contact Thrust Ball Bearing 20x47x15mm
- Regular price
- $217.39 ex VAT
- Sale price
- $217.39
- Regular price
-
In stock
Quantity Price Breaks
10+
$193.48
19+
$182.61
29+
$180.43
39+
$178.26
49+
$176.09
74+
$173.91
99+
$163.04
199+
$160.87
249+
$158.69
499+
$156.52
999+
$152.17
SKU:
20TAC47BDBCPN7A-MB
Major Branded Matched Pair Super Precision Angular Contact Thrust Ball Bearing 20x47x15mm
- Regular price
- $217.39 ex VAT
- Sale price
- $217.39
- Regular price
-
Description
Pair Precision Angular Contact Bearings: Spindle bearings are super-precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages.
Benefits: Due to their very narrow tolerances, the spindle bearings are particularly suitable for applications involving the highest requirements for guidance accuracy, such as bearing arrangements for main spindles in machine tools.
Technical

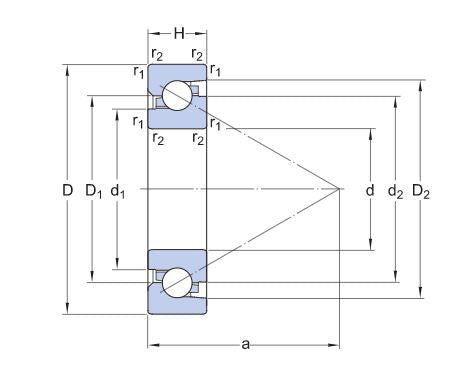

| --- | = | Dimensions |
| Bore diameter (d) | = | 20mm |
| Outside diameter (D) | = | 47mm |
| Height (H) | = | 15mm |
| Shoulder diameter (d1) | = | 29.4mm |
| Shoulder diameter (d2) | = | 34.5mm |
| Shoulder/recess diameter (D1) | = | 34.6mm |
| Shoulder/recess diameter (D2) | = | 40.65mm |
| Chamfer dimension (r1,2) | = | min. 1mm |
| Distance to pressure point (a) | = | 40mm |

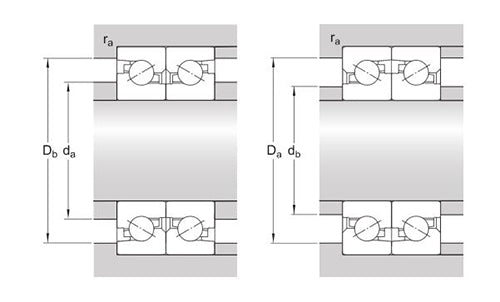

| --- | = | Abutment Dimensions |
| Diameter of shaft abutment (da) | = | min. 27mm |
| Diameter of shaft abutment (db) | = | min. 27mm |
| Diameter of housing abutment (Da) | = | max. 42.5mm |
| Diameter of housing abutment (Db) | = | max. 42.5mm |
| Radius of housing fillet (ra) | = | max. 1mm |
| --- | = | Calculation Data |
| Basic dynamic load rating (C) | = | 22 kN |
| Basic static load rating (C0) | = | 49 kN |
| Fatigue load limit (Pu) | = | 1.8 kN |
| Attainable speed for grease lubrication | = | 9000 r/min |
| Attainable speed for oil-air lubrication | = | 12000 r/min |
| Contact angle (a) | = | 62& |
| deg | = | |
| Preload | = | 2960 N |
| Frictional moment | = | 0.091 Nm |
| Static axial stiffness | = | 860 N/& |
| micro | = | m |
| Maximum axial load carrying capacity | = | max. 14.5 kN |
| Reference grease quantity | = | 1.4 cm& |
| sup3 | = |
