SKU: 20B-3-SYN-NO26-RENOLD
Renold Synergy 20B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- $158.74 ex VAT
- Sale price
- $158.74
- Regular price
-
Not in stock
Quantity Price Breaks
2
$141.28
5
$133.34
10
$131.75
29
$130.17
49
$128.58
75
$126.99
100
$119.06
200
$117.47
250
$115.88
500
$114.29
1000
$111.12
SKU:
20B-3-SYN-NO26-RENOLD
Renold Synergy 20B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- $158.74 ex VAT
- Sale price
- $158.74
- Regular price
-
Description

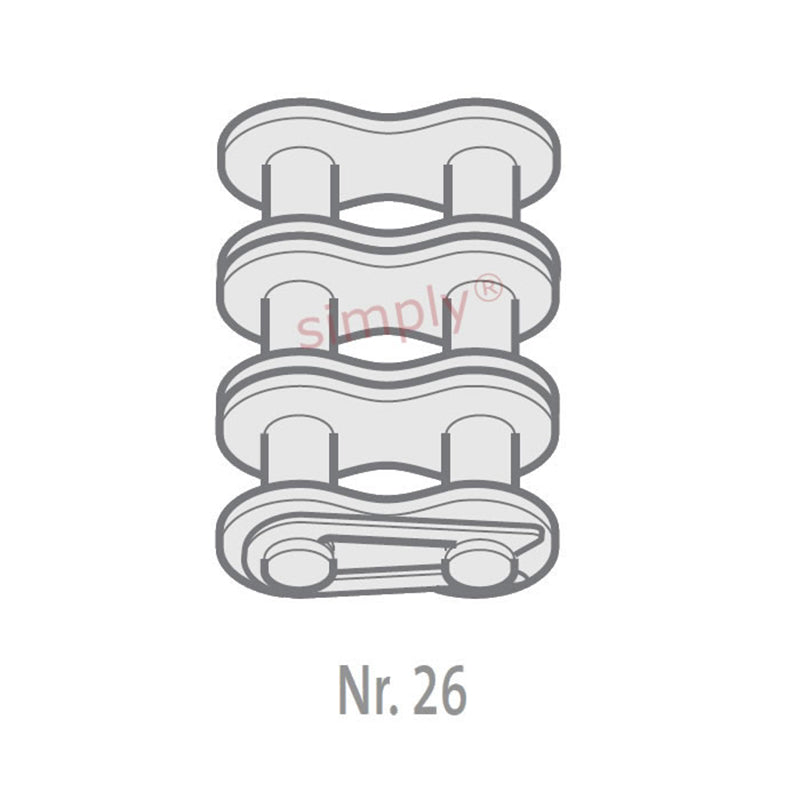

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.42mm |
| Plate Width Inner max (E) | = | 4.62mm |
| Plate Width Outer max (F) | = | 3.61mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H2) | = | 113.2mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 36.45mm |
| ISO606 Tensile Strength min | = | 250000 N |
| Weight | = | 0.08kg/m |
