SKU: 20B-2-SD-NO26-RENOLD
Renold SD 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- $56.58 ex VAT
- Sale price
- $56.58
- Regular price
-
Not in stock
Quantity Price Breaks
2
$50.36
5
$47.53
10
$46.96
29
$46.40
49
$45.83
75
$45.26
100
$42.44
200
$41.87
250
$41.30
500
$40.74
1000
$39.61
SKU:
20B-2-SD-NO26-RENOLD
Renold SD 20B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
- Regular price
- $56.58 ex VAT
- Sale price
- $56.58
- Regular price
-
Description

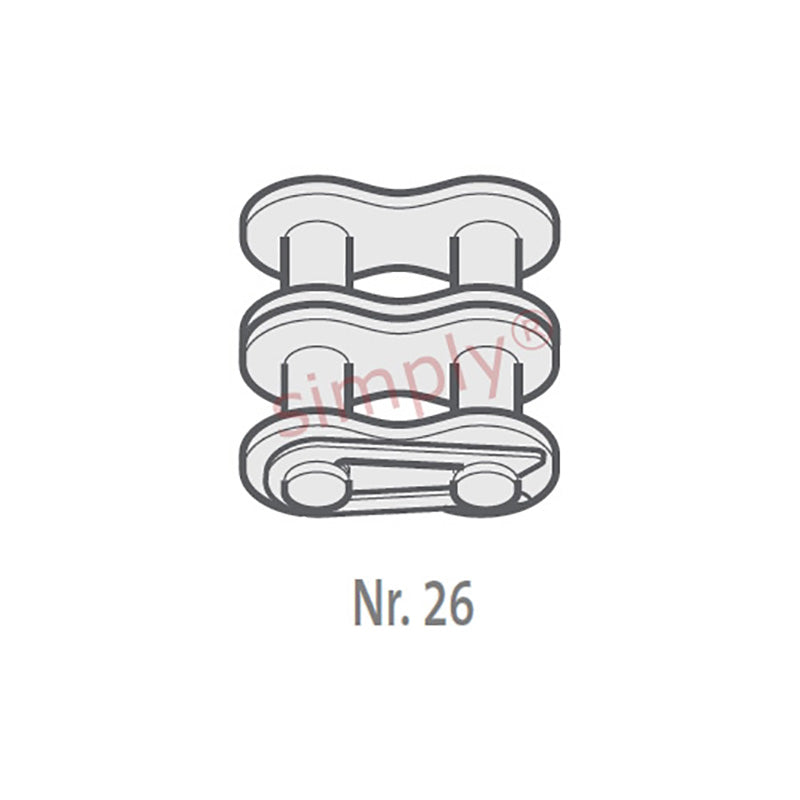

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 19.56mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 26.3mm |
| Plate Width Inner max (E) | = | 4.5mm |
| Plate Width Outer max (F) | = | 3.5mm |
| Pin Diameter max (G) | = | 10.19mm |
| Pin Length max (H2) | = | 77.2mm |
| Connecting Link Extension max (J) | = | 3.7mm |
| Transverse Pitch nom (K) | = | 36.45mm |
| ISO606 Tensile Strength min | = | 170000 N |
| Weight | = | 0.08kg/m |
