SKU: 16B-3-BB-NO26-RENOLD

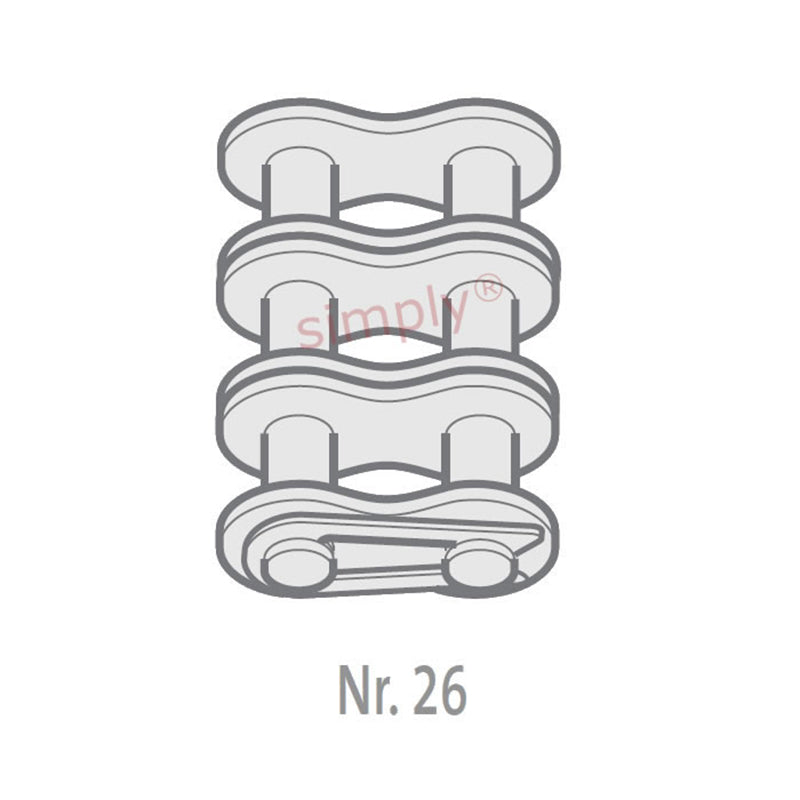

Renold Blue Box 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $42.31 ex VAT
- Sale price
- $42.31
- Regular price
-
Not in stock
Quantity Price Breaks
2
$37.66
5
$35.54
10
$35.12
29
$34.69
49
$34.27
75
$33.85
100
$31.73
200
$31.31
250
$30.89
500
$30.46
1000
$29.62
SKU:
16B-3-BB-NO26-RENOLD
Renold Blue Box 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $42.31 ex VAT
- Sale price
- $42.31
- Regular price
-
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 98.6mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | 31.88mm |
| ISO606 Tensile Strength min | = | 160000 N |
| Weight | = | 0.046kg/m |
