SKU: 16B-2-SNX-NO30-RENOLD
Renold SYNO 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $173.44 ex VAT
- Sale price
- $173.44
- Regular price
-
Not in stock
Quantity Price Breaks
2
$154.36
5
$145.69
10
$143.96
29
$142.22
49
$140.49
75
$138.75
100
$130.08
200
$128.35
250
$126.61
500
$124.88
1000
$121.41
SKU:
16B-2-SNX-NO30-RENOLD
Renold SYNO 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
- Regular price
- $173.44 ex VAT
- Sale price
- $173.44
- Regular price
-
Description

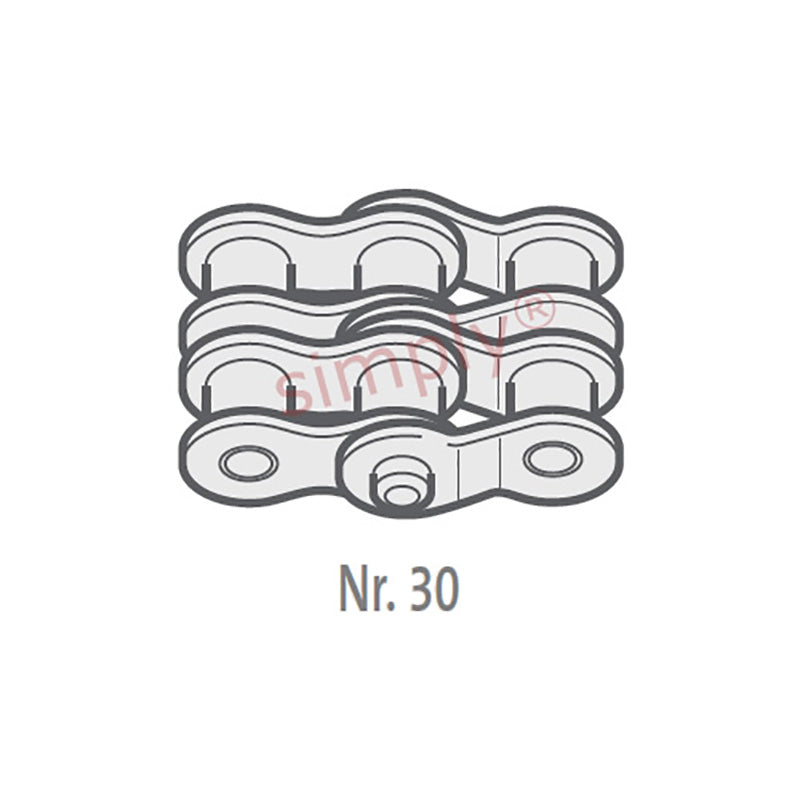

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 3.76mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H2) | = | 66.8mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 106000 N |
| Weight | = | 0.046kg/m |
