SKU: 160-3-NO11-DUN
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $55.45 ex VAT
- Sale price
- $55.45
- Regular price
-
Not in stock
Quantity Price Breaks
2
$49.35
5
$46.58
10
$46.02
29
$45.47
49
$44.91
75
$44.36
100
$41.59
200
$41.03
250
$40.48
500
$39.92
1000
$38.82
SKU:
160-3-NO11-DUN
Branded 160-3-NO11 ANSI / AS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $55.45 ex VAT
- Sale price
- $55.45
- Regular price
-
Description

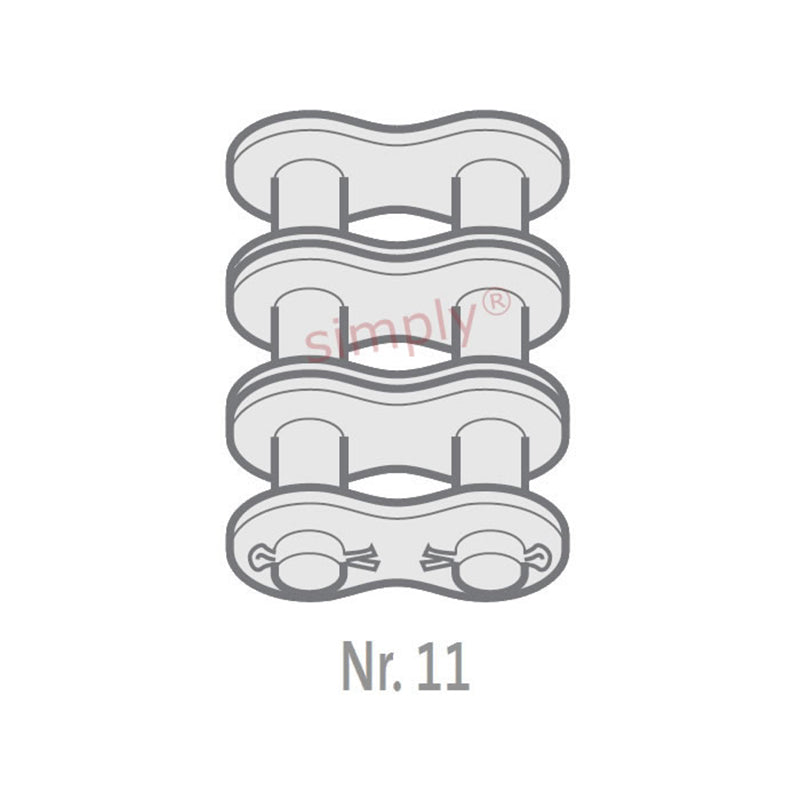

Branded COT / No. 11 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48mm |
| Plate Width Inner max (E) | = | 6.4mm |
| Plate Width Outer max (F) | = | 6.4mm |
| Pin Diameter max (G) | = | 14.2mm |
| Pin Length max (H1) | = | 170.5mm |
| Connecting Link Extension max (J) | = | 16.8mm |
| ISO606 Tensile Strength min | = | 669000 N |
| Weight | = | 58.55kg/m |
